b. Lift oven into cabinet cutout using the oven
opening as an grip. Carefully push against
oven front frame. Do not push against
outside edges.
c. As you slide the oven back, pull the string
so that the conduit will lie on top of the oven
in a natural loop.
d. When you are sure the conduit is out of the
way, slide the oven 3/4 way back into the
opening. Remove the string by pulling on
one end of the loop.
C2
a. Drill four-1/8” pilot holes through the mounting
holes (top and bottom) of the side trim, for
the eight #8 screws provided.
b. Secure the oven to cabinet with screws
provided.
NOTE: Mounting screws must be
used. Failure to do so could result in
the oven falling out of the cabinet
causing serious injury.
8
Note: Before drilling the pilot holes
make sure the oven is pushed as far
back into the opening as it will go
and centered.
Sliding the Oven Into the
Opening.
C1
a. Loop (do not tie) a 36” string around the
conduit before the oven is slid into place.
This will keep the conduit from falling behind
the oven.
Placing the Oven in the Opening C
The screws must be
a minimum of 1/4”
from the front of the
cutout.
Installation Instructions
Drilling the Pilot Holes
NOTE: If the cabinet is particle board, you
must use 4 #8 x 3/4 particle board screws.
These may be purchased at any hardware
store.
Pull out on string
loop while
pushing the oven
into the cabinet
PULL OUT ON
STRING LOOP
WHILE PUSHING
THE OVEN
INTO THE CABINET

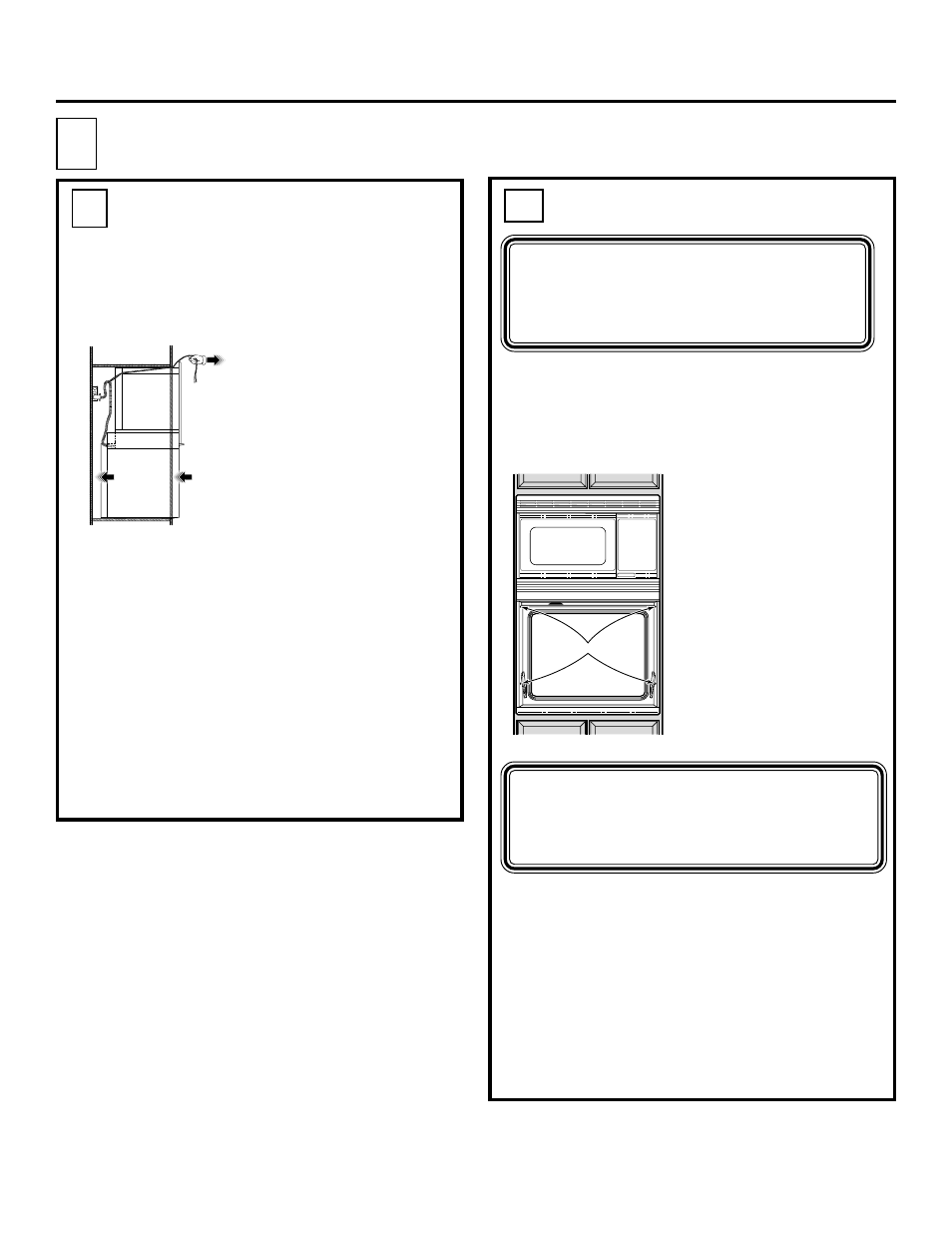

MOUNTING HOLE LOCATIONS
