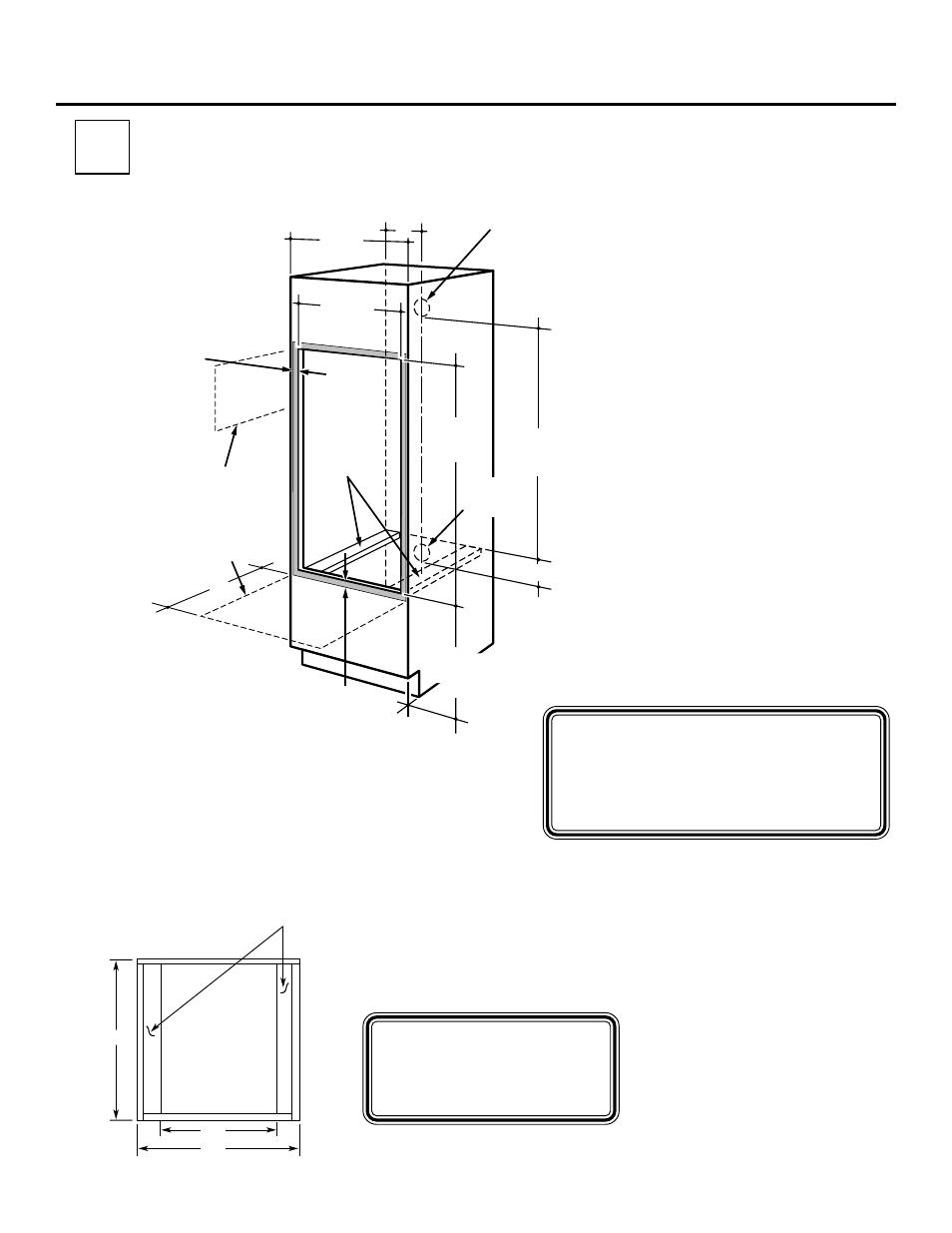

Cutout for Built-In Oven W/Microwave
Installation Instructions
A
Cabinet Width 27”
Recommended
Cutout Location
From Floor ..... 21 5/8”
Cutout Depth . 23 1/2”
Cutout Width .. 25 ” Min.
........................ 25 1/4” Max.
Cutout Height 41 1/8” Min.
........................ 41 1/4” Max.
Overall Height 41 5/8”
Overall Width.. 26 5/8”
If the cabinets do not have a solid bottom, then
two braces or runners must be installed to
support the weight of the oven. The runners
and braces must support 275 pounds.
5
NOTE: If using equivalent
runners, then the center of
the equivalent runners
should be 20 1/2”.
CUTOUT
WIDTH
25" MIN.
25 1/4" MAX.
10"
48"
5"
JUNCTION BOX
LOCATION
To bottom
of junction box
CABINET
WIDTH
27"
Allow a minimum of 20"
for clearance to adjacent
corners, drawers, walls, etc.
when doors are open
Allow 7/8"
for overlap of
oven over side
edges of cutout
Allow 1" for
overlap of oven
top and bottom
of cutout
CUTOUT
HEIGHT
41 1/8" MIN.
41 1/4" MAX.
Recommended
cutout location
from floor
21 5/8"
20"
2" x 4"
or
equivalent
runners
Alternate
junction box
location
18"
27"
24"
2" x 4" or
Equivalent
Runners
NOTE: If the cabinet does not have
a front frame and the sides are less
than 3/4” thick, shim both sides
equally to establish the cutout
width.
