Fuses
Before replacing a blown fuse,
determine the cause of the short circuit.
Spare fuses are supplied inside the
main fuse box. Observe amperage and
color of fuse.
A special fuse puller is supplied with
the vehicle tools.
Always use a new fuse for replacement.
Never attempt to repair or bridge a
blown fuse.

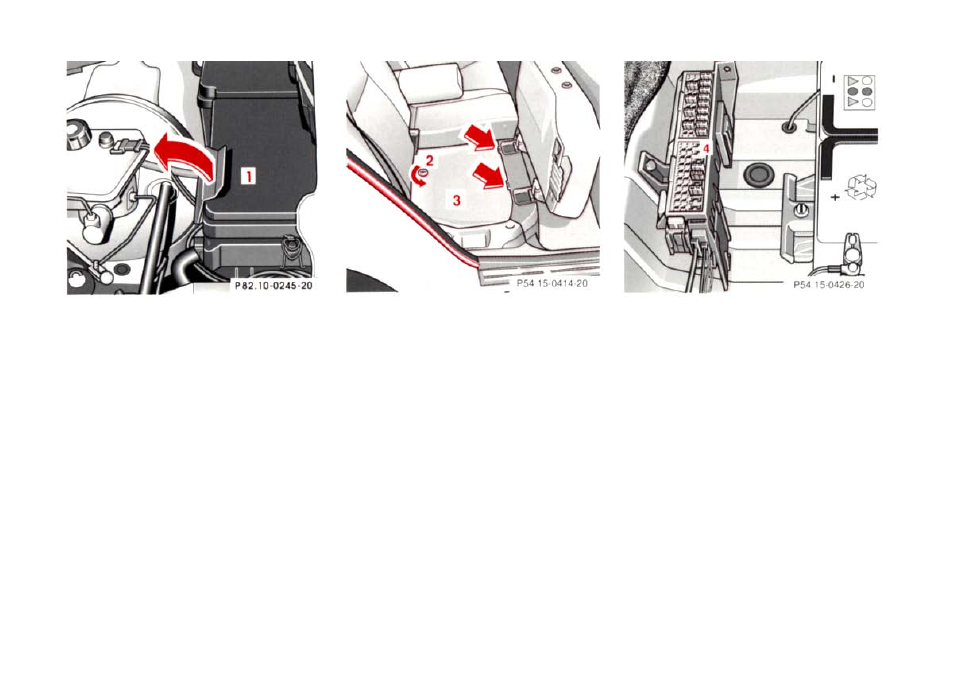

1 Main fuse box in engine
compartment
To gain access to the main fuse
box (1), release clamp (arrow),
lift the fuse box cover up and
remove it.
To close the main fuse box,
engage right end of cover and
secure with clamp.
2 Lock for auxiliary fuse box and
battery cover.
3 Fuse box and battery cover.
4 Auxiliary fuse box below right rear
bench seat.
To gain access, fold seat cushion
forward. Rotate lock (2) counter-
clockwise and remove cover.
Note:
When reinstalling cover (2) make
certain that tabs (arrows) are inserted
