E 300 TURBODIESEL

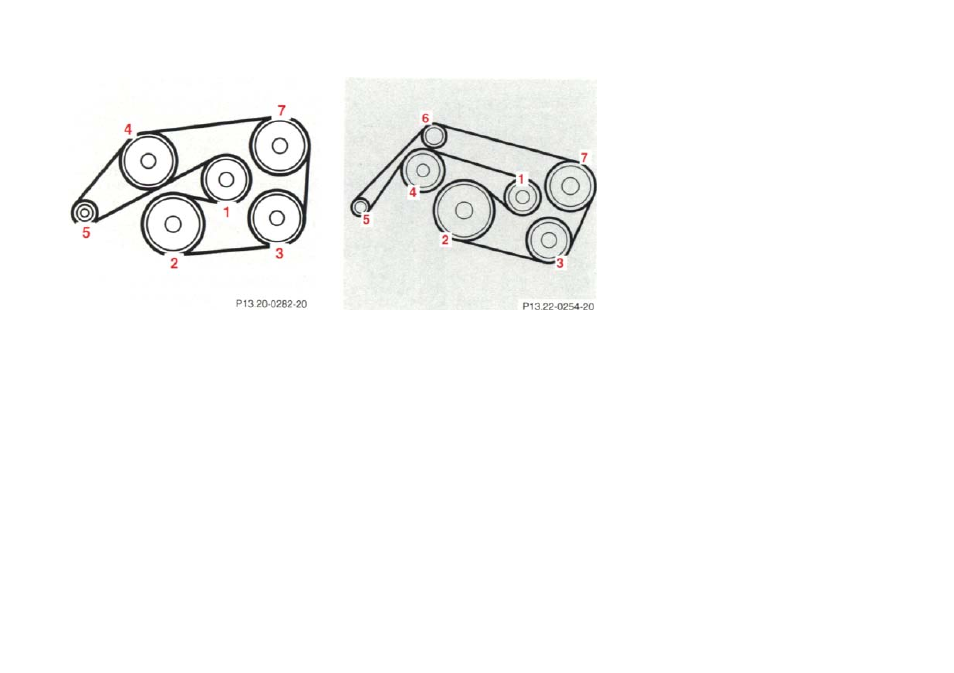

Layout of Poly-V-belt Drive

1

Automatic belt tensioner

2

Crankshaft

3

Air conditioning compressor

E 320, E 430, E 55 AMG

4

Coolant pump, fan

5

Generator (alternator)

6

Idler pulley

7

Power steering pump
