117

Exterior Lamps

Headlamp Adjustment

Correct headlamp adjustment is
extremely important. Check and
readjust headlamps at regular intervals
and when a bulb has been replaced.

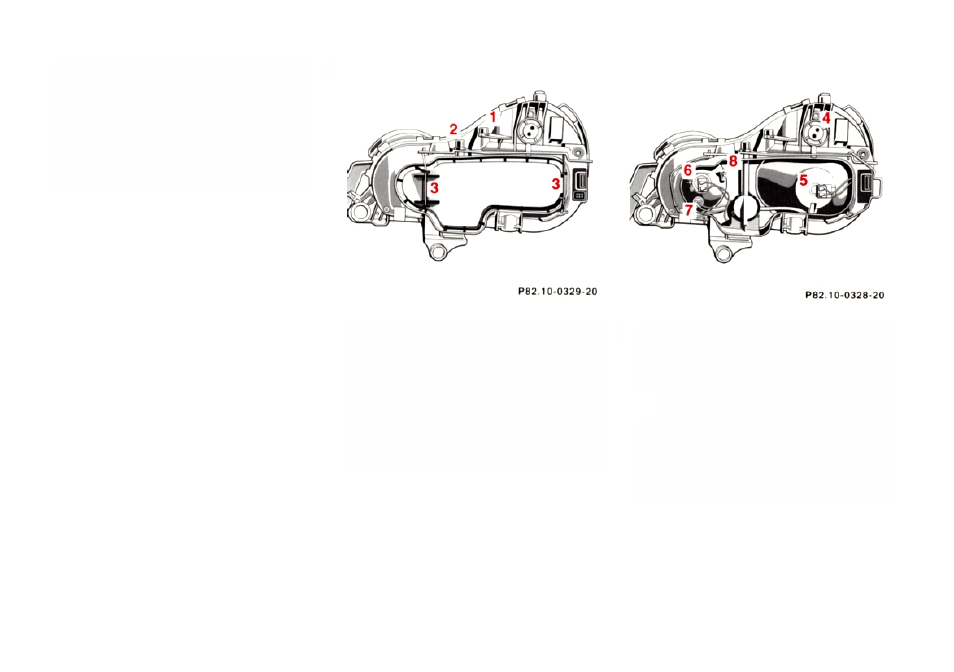

Headlamp Assembly

1

Headlamp horizontal adjustment

screw

2

Headlamp vertical adjustment
screw

3

Clamps for headlamp cover

4

Bulb socket for turn signal lamp

5

Electrical connector for low
beam headlamp bulb

6

Electrical connector for high
beam headlamp bulb

Xenon lamp (optional) ignition
module for low beam

7

Bulb socket for parking and
standing lamp

8

Level for headlamp vertical
adjustment
