381
Practical hints
Replacing bulbs

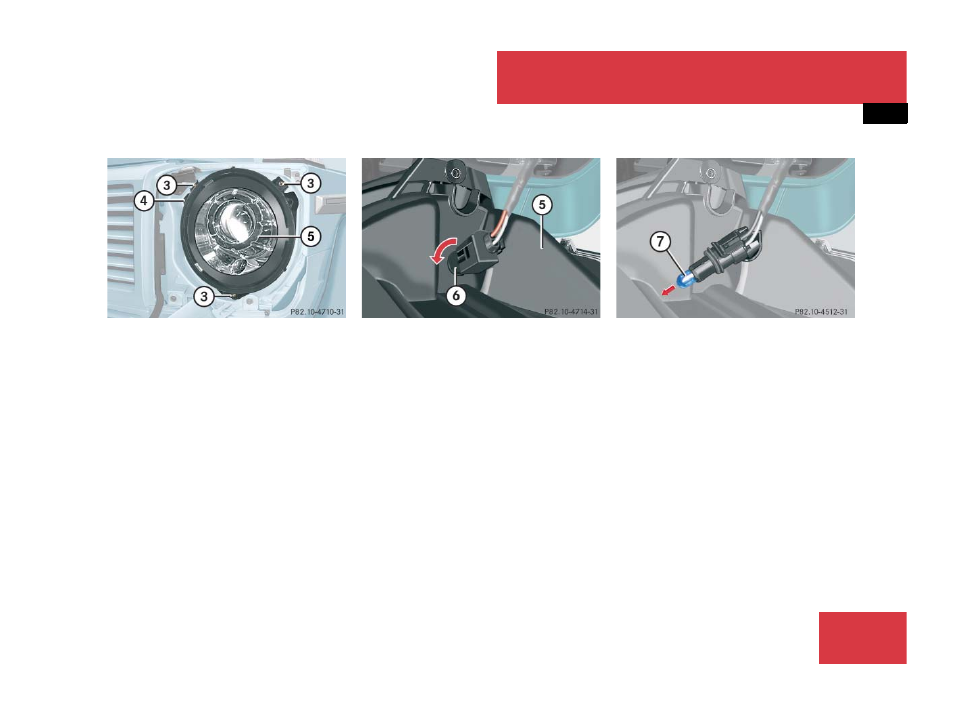

Left headlamp shown, right headlamp
laterally reversed
3 Securing screw (headlamp)
4 Adjusting screw (headlamp)
5 Headlamp
̈ Loosen and remove headlamp-securing
screws
3.
̈ Remove headlamp 5.
5 Headlamp
6 Bulb socket
̈ Hold headlamp 5, push gently onto
bulb socket 6, and turn bulb
socket 6 counterclockwise to its
stop.
̈ Pull bulb socket 6 out of
headlamp 5.
7 Bulb
̈ Pull bulb 7 out of its bulb socket.
̈ Insert the new bulb into the bulb
socket.
̈ Hold headlamp 5, insert bulb
socket 6 into headlamp 5, and turn
bulb socket 6 clockwise to its stop.
̈ Insert headlamp 5 and install and
tighten headlamp-securing screws 3.
̈ Install headlamp trim panel 2 and the
seal.
̈ Install and tighten securing screws 1.
i
Do not turn adjusting screw 4. If adjusting
screw 4 is turned, the headlamp adjustment
must be checked at a Mercedes-Benz Light
Truck Center.
