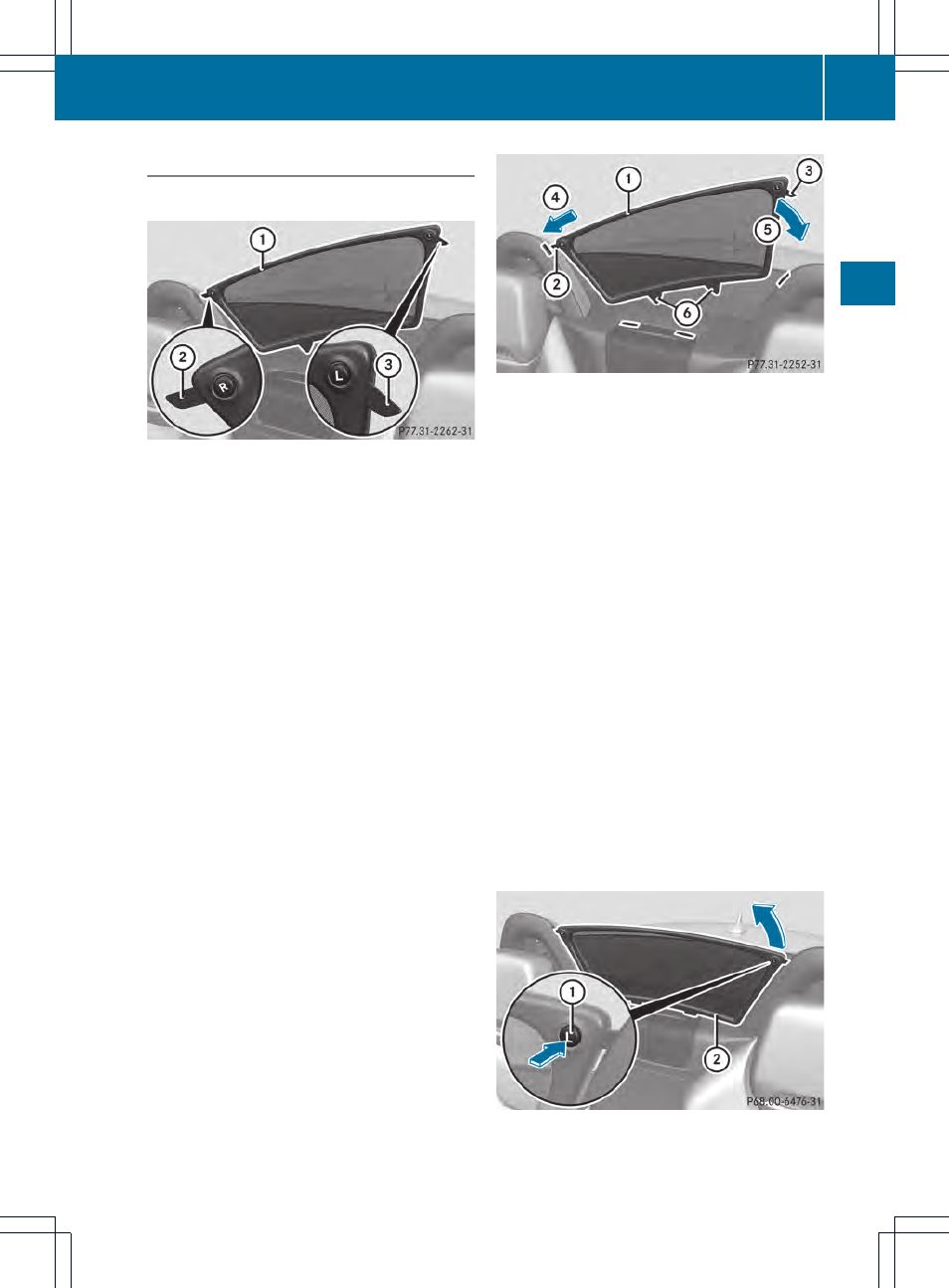

Installing and removing the wind screen
Preparing for installation
Preparing for installation from the left side of the
vehicle (example)
:
Wind screen
;
Locked latch
=
Unlocked latch
X
The following conditions must be fulfilled
for installation:
R
unlocking buttons R and L point in the
direction of travel.
R
latch = facing you is unlocked.
R
latch ; facing away from you is locked.
X
To unlock the latch: press unlocking
button R or L on the locked latch.
X
To lock the latch: push the unlocked latch
upwards by hand until it engages.
Installing
X
Stop the vehicle, paying attention to road
and traffic conditions.
X
Take the wind screen out of the trunk.
Installation from the left side of the vehicle
(example)
X
Prepare for installation (
Y
page 87).
X
Hold wind screen : at an angle and slide
it with locked latch ; in the direction of
arrow ? into the bracket of the opposite
roll bar.
X
Press wind screen : on the side of the
vehicle facing you downwards in the
direction of arrow A until it engages.
Make sure that studs B and latch = fit
into the respective brackets.
X
Check whether wind screen : is fully
inserted into all four brackets and is sitting
securely.
X
If this is not the case, remove wind
screen : again and repeat the steps
above.
Removing
X
Stop the vehicle, paying attention to road
and traffic conditions.
Removing from the left side of the vehicle
(example)
