12.
Calibration:
Calibration must be preformed to achieve the best color representation on the monitor when using an
analog input. Best results are achieved when you calibrate using the camera or video recording device
you will be using in the production environment. If you camera does not have an option to send out
color bars you can use a DVD player and a calibration Disk.

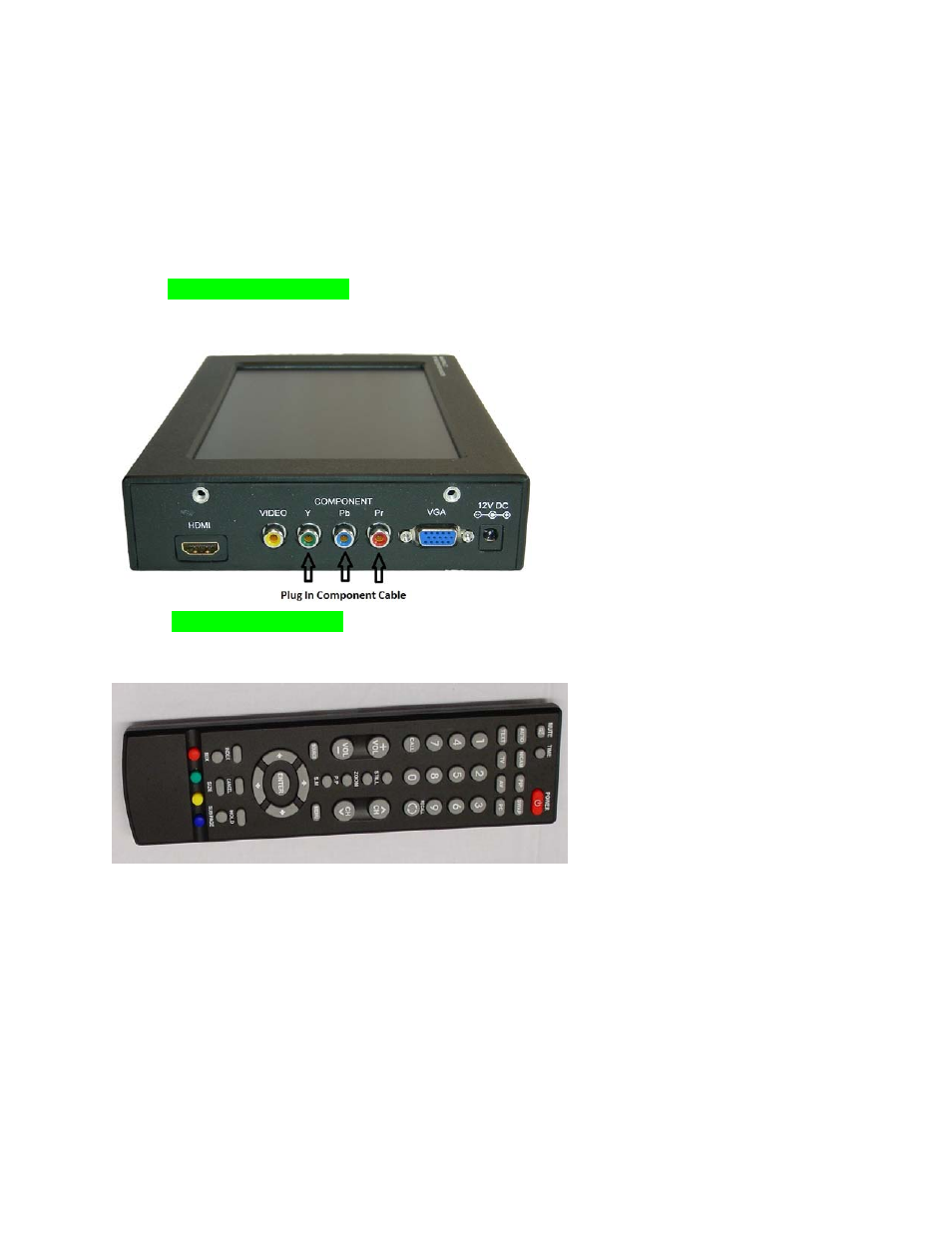

1. Plug in YPbPr Component Input to Video Camera or Video source connect it to you Manhattan
LCD Monitor. Please use all 3 cables Red; Green & Blue make sure they are in the correct place
before continuing.
2. Select Component input.
With the remote press the Source Key on remote then scroll down to the Component input
using the arrow keys and hit ENTER.
OR With the keypad on the monitor Input Button use the ^ v arrows and hit INPUT again to
select it.
