Section: Sun‐Hood Installation

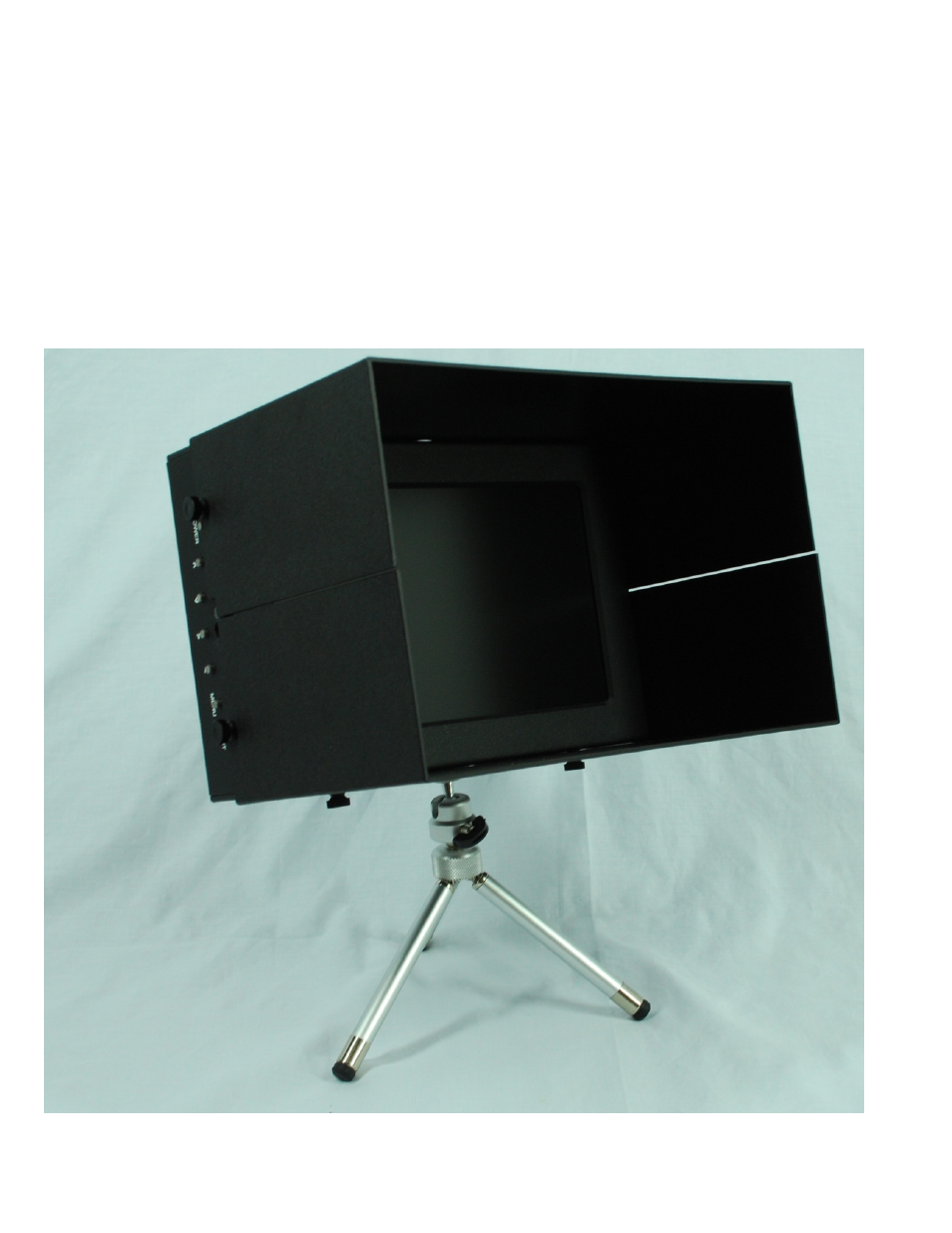

There are 8 treaded holes on the monitor 2 on each side the sun hood is a 2 piece design 1 piece fits
on the top the second on the bottom they are made to fit on either side. The sun hood mounts to the
monitor with supplied thumbscrews in 2 easy steps.
1. Thread in the thumbscrews about half way
2. Then slide the groves in the sun hood around the shaft of the thumbscrews and Snug the
thumbscrews. (Do not over tighten or you may strip the thumbscrews)
\
