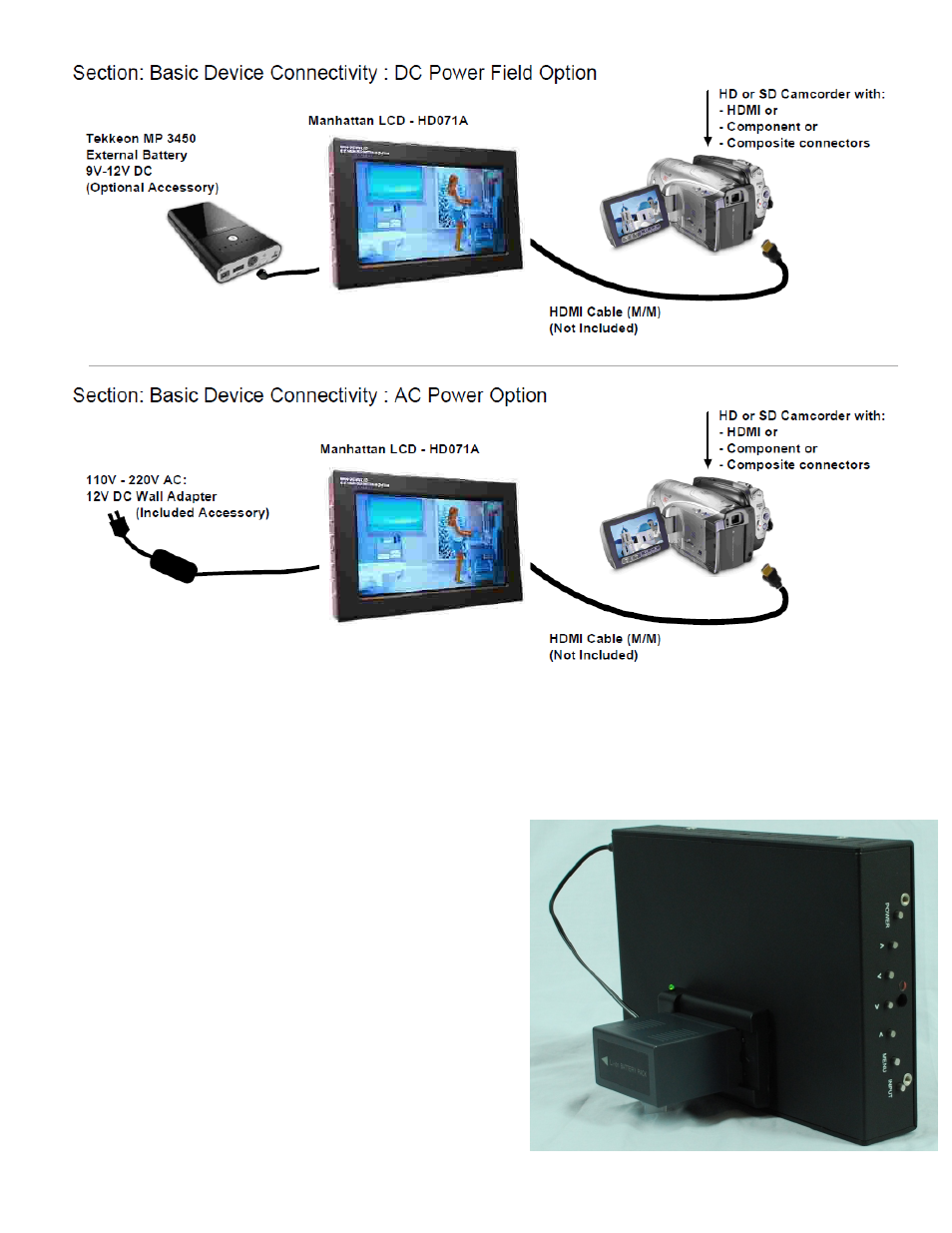

Our HD071A & HD089B model monitors may use any 12V regulated power source. All monitors ship
with a supplied 12V regulated AC adapter. The input connector is a standard 2.1x5.5mm barrel
connector the center pin being + positive outer shell is ‐ negative. You may use any power source as
long as it is regulated. If the polarity is reversed it will void your warranty, if you overpower the
monitor with a higher voltage than 12.5 volts it will
blow a fuse and void the warranty. We currently offer
optional battery packs with Velcro strips for mounting
& battery plates for Panasonic Cannon & Sony Batteries
that include a built in power regulator to ensure proper
operation. The Battery plates are mounted to the
monitor at the factory and are mounted in a sideways
position to allow the monitor to be flipped upside‐
down on cameras with 35mm lens adapters. Note the
green status indicator it will turn on when the battery is
charged and flash when the battery is low. The power
wire connects to the 12V dc jack when the monitor is
being powered by the plate.
