• When routing RCA cables, keep them away from the power cables and output
speaker wires, engine, exhaust system, etc. Heat may damage wires.
• If the fuse should blow, make sure that all connections are correct, the cables have
not caused a short circuit, and no wires are damaged. Then replace the fuse with a
new fuse of the same amperage value as the original fuse. When replacing a fuse,
never let the battery side touch any metal part or any other wire.
• Never let disconnected cables or terminals touch metal on the car or any other
conducting material.
• To prevent short circuits, do not remove the caps from unused terminals or from the
ends of unconnected cables.
• Insulate unconnected wires with vinyl tape or other similar material.
WARNING!
To prevent short circuits during installation, disconnect the
vehicle’s negative (-) battery lead before making any power
connections.
Installation procedure
The OHM875VD / OHM1075VD / OHM1575VD replaces the car’s dome light. This
section provides basic tips and techniques to aid the installation. These are not vehicle
specifi c, but should be used as guidelines for performing the installation.
Set the polarity switch
1. Determine the polarity of the power system in the car. This information should be on
a vehicle-specifi c diagram.
2. Locate the polarity switch on the back of the player (the side that will be attached to
the ceiling).

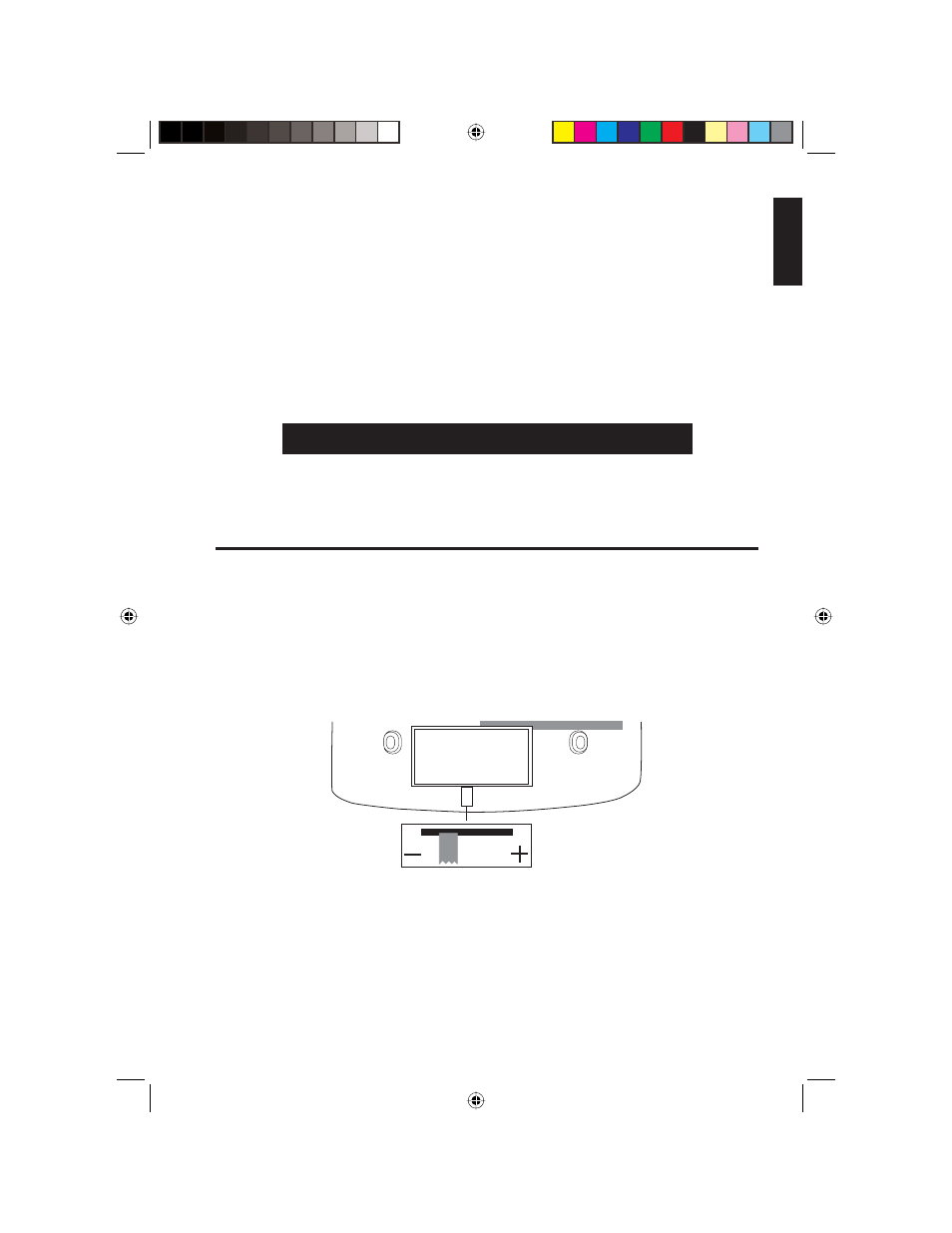

9 Polarity switch
Please slide to "-" at the left position
if your vehicle's power supply system is
negative. Please slide to "+" at the right
position if your vehicle's power sypply
system is positive
Notes: 1 Please slide it to a side fully.
2. Do not slide this swith after Place it
at a position. Otherwise, it'll be damage
Back of the player
3. If the vehicle’s power supply requires negative polarity, slide this switch to the
negative (-) position. Otherwise, slide this switch to the positive (+) position.
