2 Description
Kontron User's Guide
chipDISK Adapter for all Boards
6
2 Description
Adapter for connecting a chipDISK to a 3.5" hard disk interface, or replacement of a 2.5" hard disk by a
chip-DISK.
The adapter is equipped with two 44 pin 2mm grid headers, one 40 pin 2.54mm grid header. The 3rd 44
pin 2mm grid header is not mounted. Power can be supplied through the onboard 4 pin power connector
(known from floppy drives). A special hole can be used for the mechanical mounting of the chipDISK. The
lower part of the PCB can be removed at the nominal fractional line, if the additional mounting holes are
not needed.

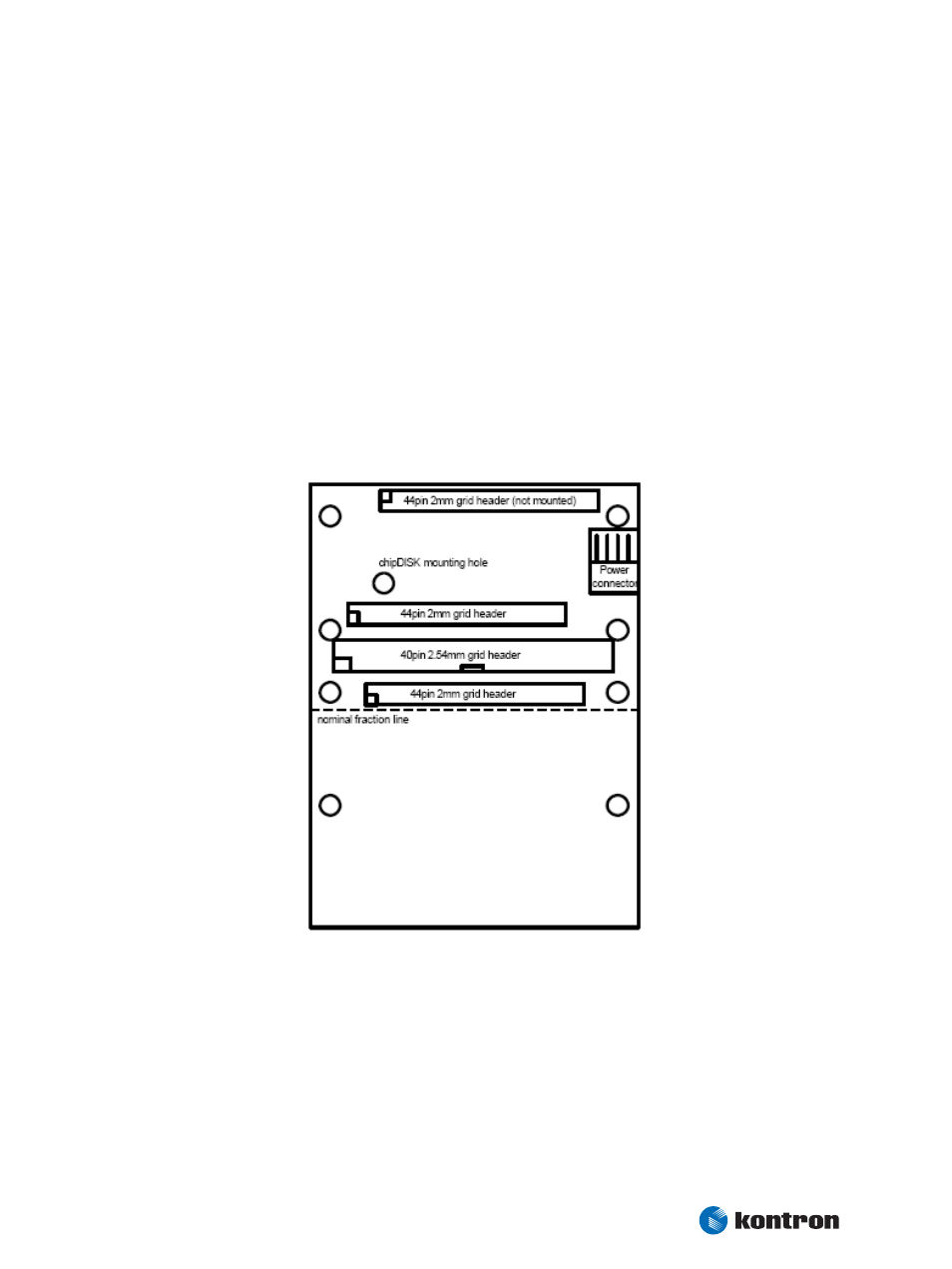

Drawing 1: chipDISK adapter
