Underhood fuses (power distribution center), Underhood fuses (power distribution, Center) – Jeep 2009 Commander User Manual

Page 453

background image

Cavity

Cartridge

Fuse

Mini-Fuse

Description

20

10 Amp
Red

Steering Column
Control Module
(SCCM), Cluster (R/
S), BUX Trailer Tow

21

Spare (Acc
Delay)

22

15 Amp
Blue

Rear Wiper (B+)

24

10 Amp
Red

Power Distribution
Center (PDC) Relays,
Powertrain Control
Module, A580 (R/S)

25

10 Amp
Red

Shifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Trailer
Sway Damp Relay

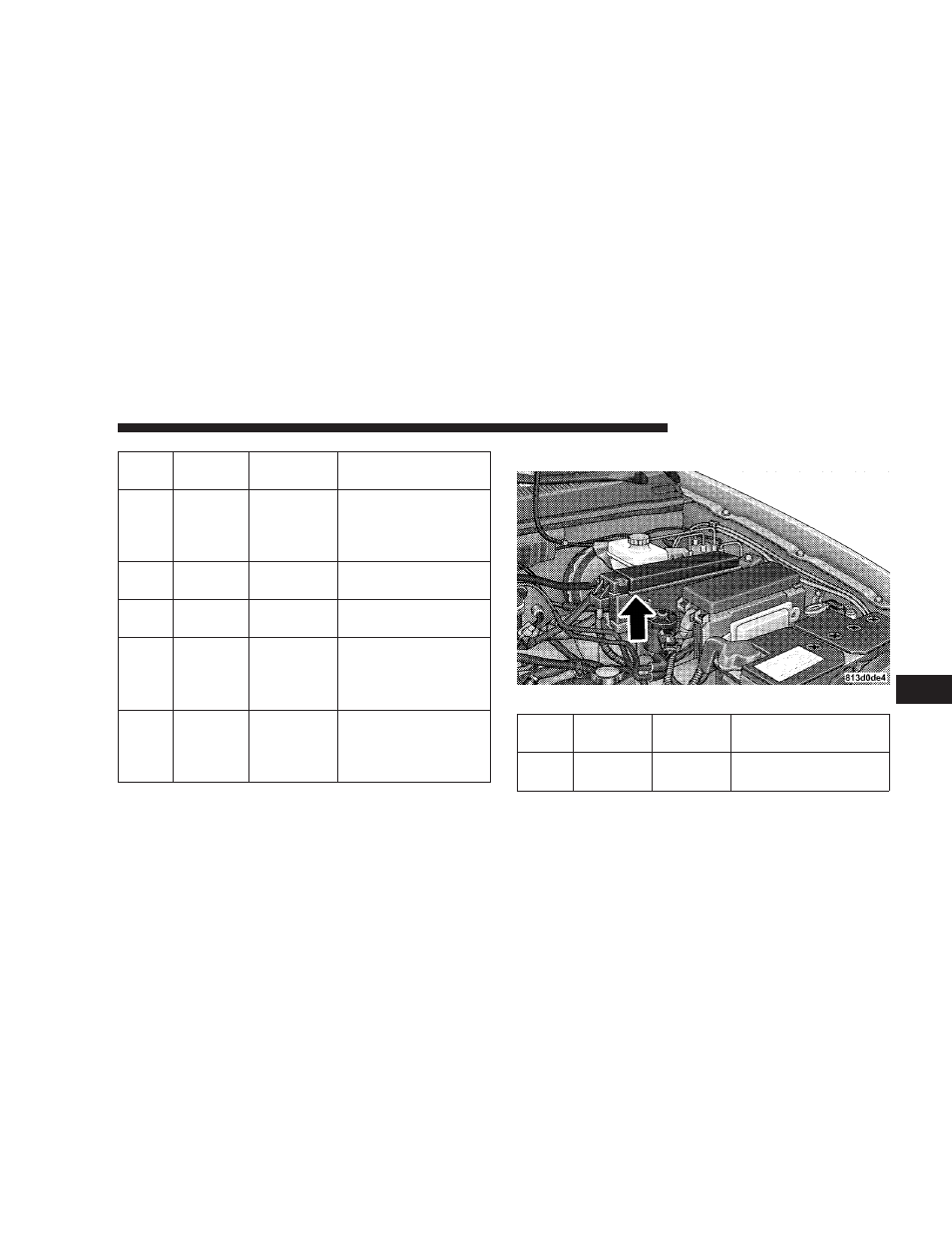

Underhood Fuses (Power Distribution Center)

Cavity

Cartridge

Fuse

Mini-

Fuse

Description

1

50 Amp
Red

PTC Heater 1 (Diesel
Only)

Power Distribution Center

MAINTAINING YOUR VEHICLE

451

7
