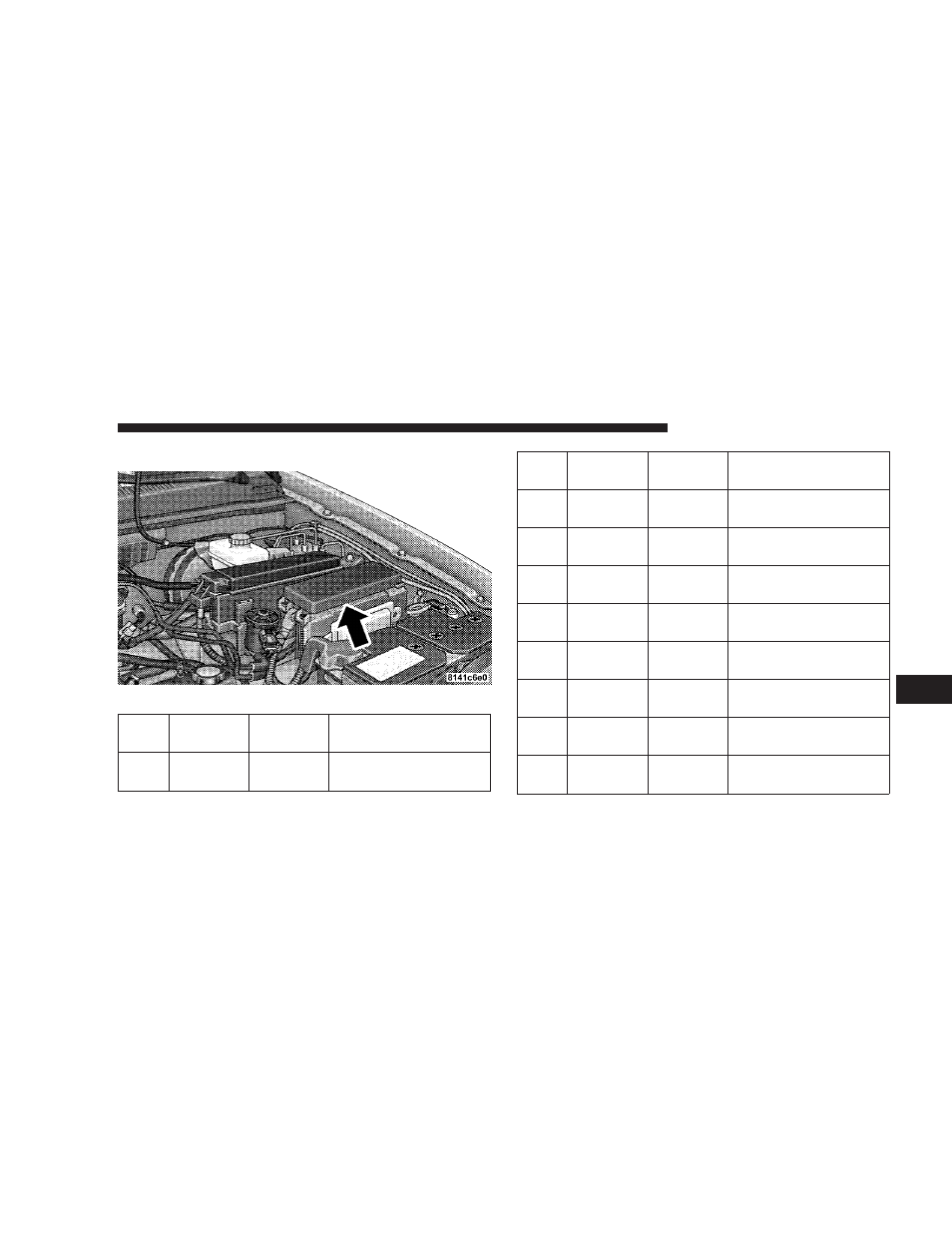

Underhood Fuses (Integrated Power Module)

Cav-

ity

Cartridge

Fuse

Mini Fuse

Description

8

10 Amp
Red

Lt Park Lamps

Cav-

ity

Cartridge

Fuse

Mini Fuse

Description

9

10 Amp
Red

Trailer-Tow Park
Lamps

10

10 Amp
Red

Rt Park Lamps

12

20 Amp
Yellow

Front Control Module
(FCM) Batt #4

13

20 Amp
Yellow

Front Control Module
(FCM) Batt #2

14

20 Amp
Yellow

Adjustable Pedal

15

20 Amp
Yellow

Ft Fog Lamps

16

20 Amp
Yellow

Horn

17

20 Amp
Yellow

Rear Wiper

Integrated Power Module
