Cavity

Cartridge

Fuse

Mini

Fuse

Description

1

30 Amp
Green

Audio Amp (B+)

2

15 Amp
Blue

Sunroof (B+)

Cavity

Cartridge

Fuse

Mini

Fuse

Description

3

10 Amp
Red

Htd Mirror (EBL)

4

20 Amp
Yellow

Rr Pwr Out (B+)

5

10 Amp
Red

Rr HVAC (R/O) (XK
Only)

6

Spare (B+)

7

20 Amp
Yellow

Door Locks (B+)

8

15 Amp
Blue

Steer Col Lock (B+)
(ELV)

9

20 Amp
Yellow

Pwr Outlet (B+)

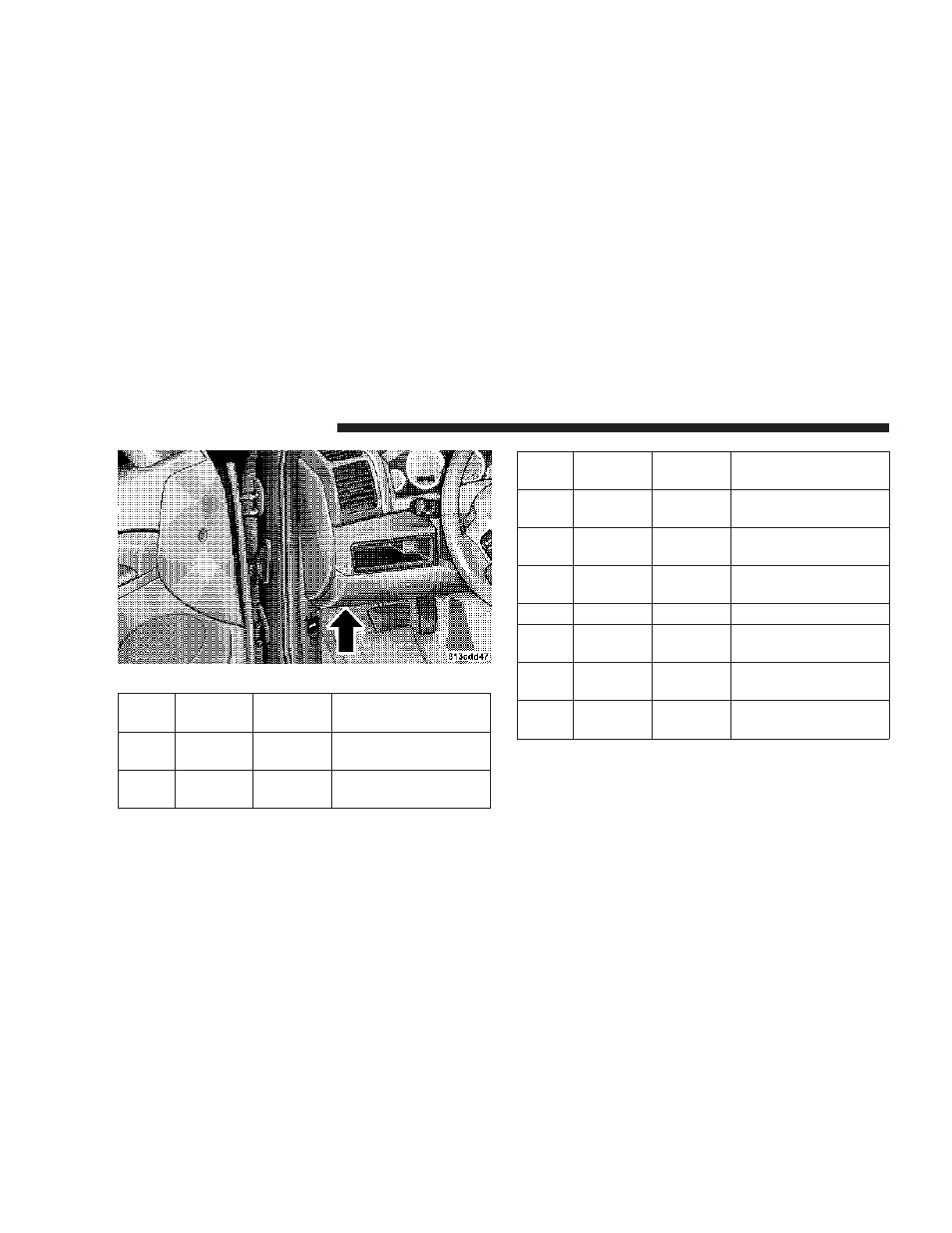

Fuse Panel Location
