Your system is now ready. Connect the power cable to a power source and
press the power button on the front of the system.
Step 5 - Hardware Installation Complete

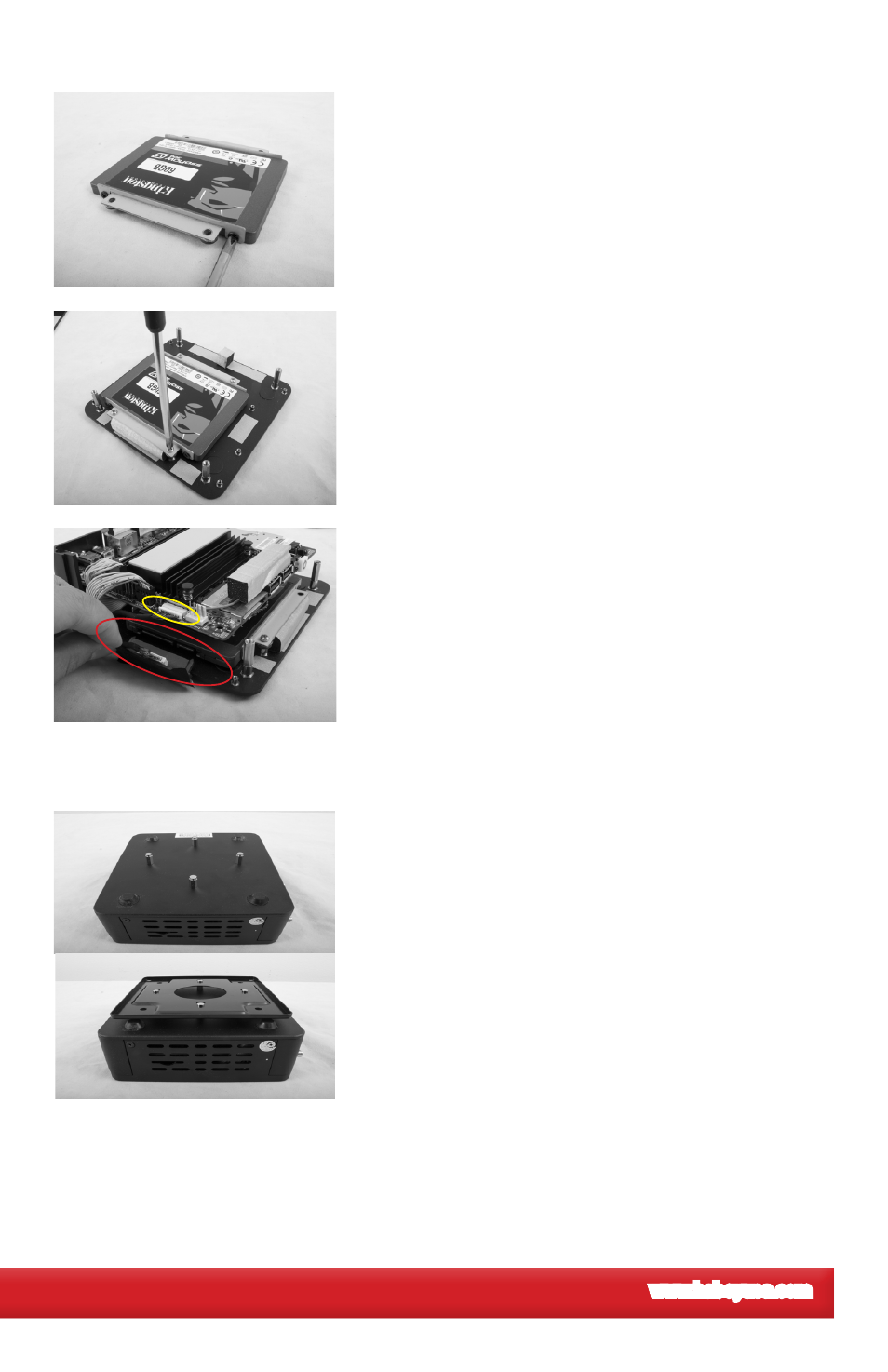

Mount the HDD on the tray with the four
screws in the small plastic package.
Then mount the HDD bracket back onto the
backplane and fix it with four screws.
Use the SATA connector to connect the HDD
with the board as marked in circles.
Take out the four mounting screws from the
screw package and tighen them into the four
mounting holes on the bottom cover.
Place the mounting rack on the top of the
four screws.
Step 4 - Rack Mounting
