Unpacking
The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the board,
make sure that the person handling it is static protected.
2. Memory Support
The MITX-6771 supports up to two 4 GB of DDR3L (Low Voltage) SO-DIMM of up to 1333 MHz in two
horizontal sockets. Populate memory on Socket SO-DIMM1 first.
2.1 Memory Population Guidelines
Note: Be sure to use memory modules of the same type, same speed, same frequency on the same
motherboard. Mixing of memory modules of different types and speeds is not allowed.

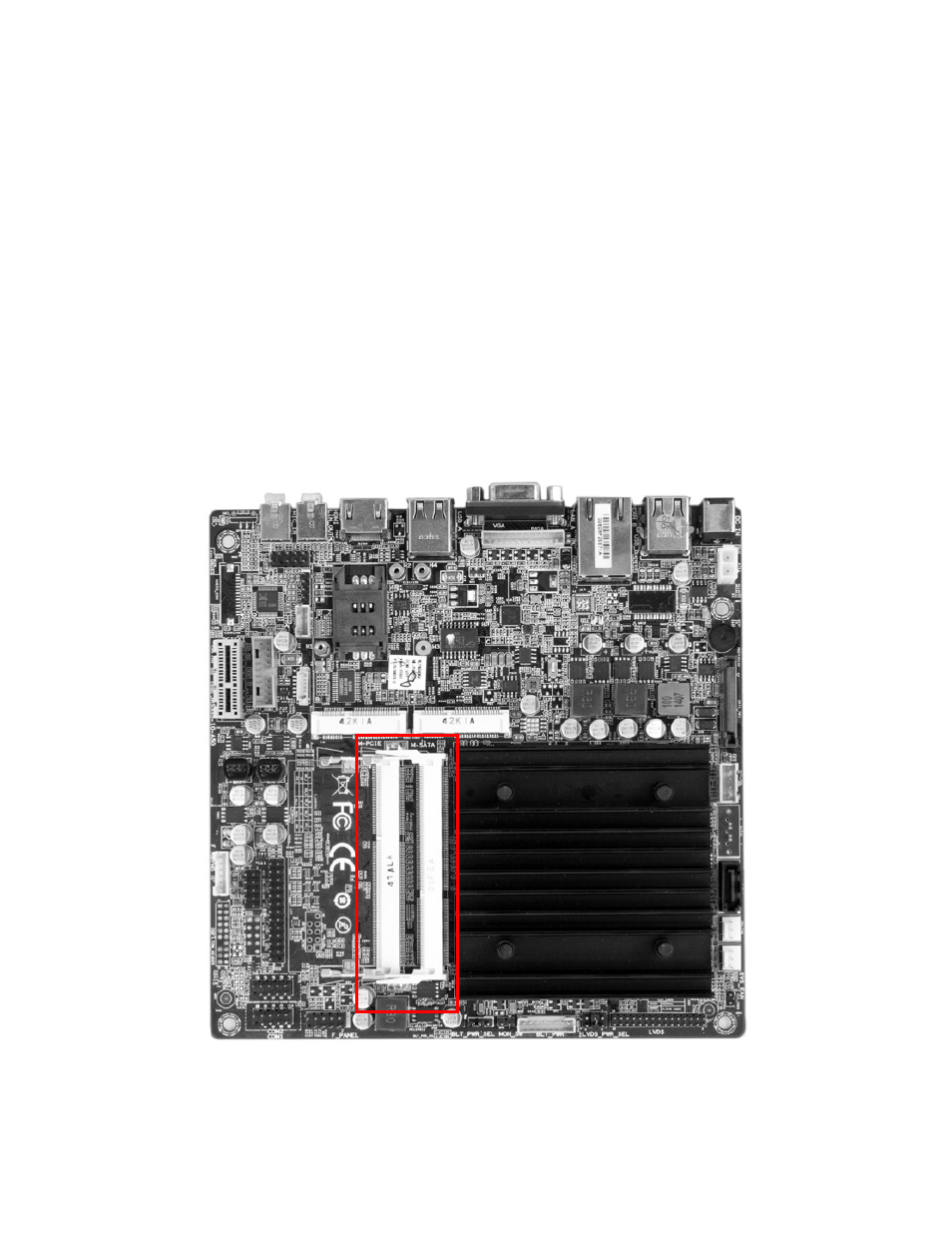

Figure 1: JDIMM
