Habey EMB-4500 User Manual
Page 20
LVDS0_TX3_POS
35
36
LVDS1_TX3_POS
GND
37
38
GND
VCC5
39
40
VCC5

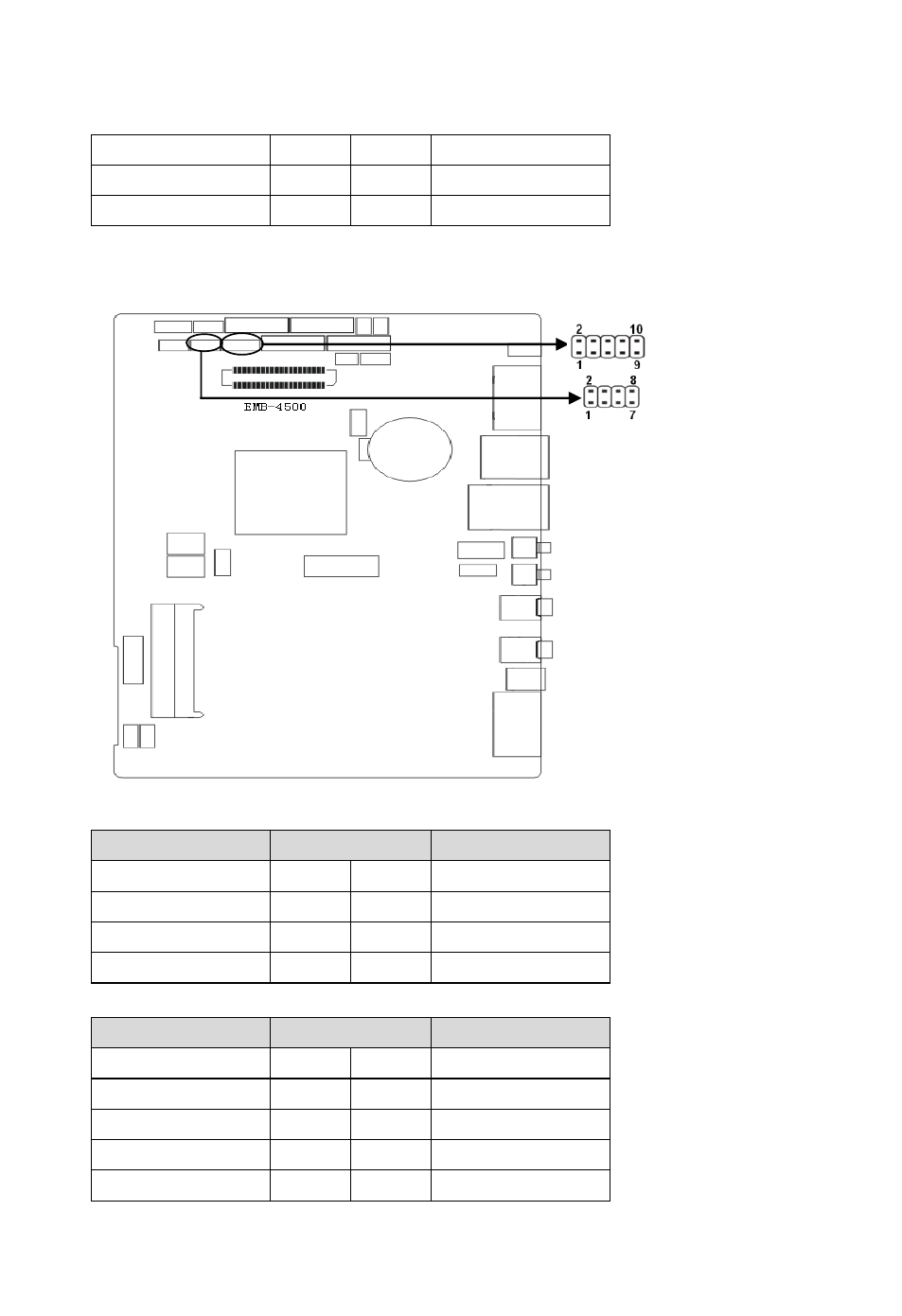

2.4.8 (JTCH)
JTCH:
Signal Name
Pin
管脚
Signal Name
+3.3V
1
2
GND
LVDS1_SCL
3
4
LVDS0_SCL
LVDS1_SDA
5
6
LVDS0_SDA
CAP_TCH_INT0
7
8
CAP_TCH_INT1
JLVDS
Signal Name
Pin
管脚
Signal Name
NC
1
2
+3.3V
BACKLIGHTON
3
4
LVDS_VDD
GND
5
6
VCC5
L_BKLT_CTL
7
8
LVDS_VDD
+VIN
9
10
+VIN
15
