Chicago Electric 96299 - Manual (Page 13)

SKU 96299 For technical questions, please call 1-800-444-3353. PAGE 13
Part Description Qty
1 Chuck 1
2 Gear Box with Torque Ring 1
3 Screw 7
4 Right Body 1
5 Screw 4
6 Rotation Button 1
7 Clear Soft Grip 1
8 Right Plate 1
9 Tube 1
10 Black Wire 1
11 Red Wire 1
12 Trigger 1
Part Description Qty
13 Left Plate 1
14 Left Body 1
15 Black Wire 1
16 Red Wire 1
17 Bracket 1
18 Contact Plate 2
19 Battery Pack 1
20 Charger 1
21 Adapter 1
22 Bit Adapter 1
23 Screwdriver Bits (in holder) 1 set

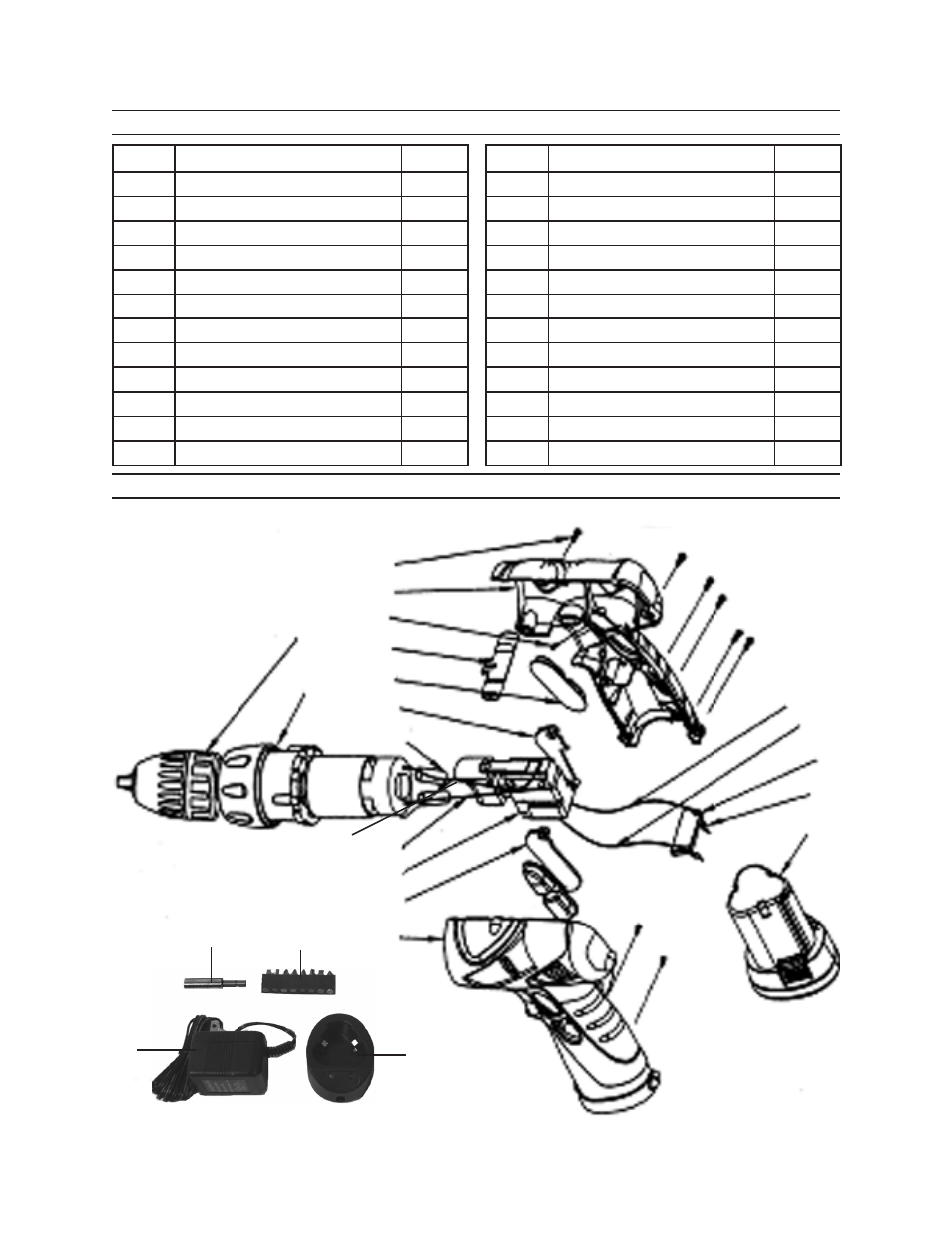

PARTS LIST
ASSEMBLy DIAGRAM
1
2
9
8
7
6
5
4
3
15
16
17
18
19
10
12
13
14
23
22
21
20
11
