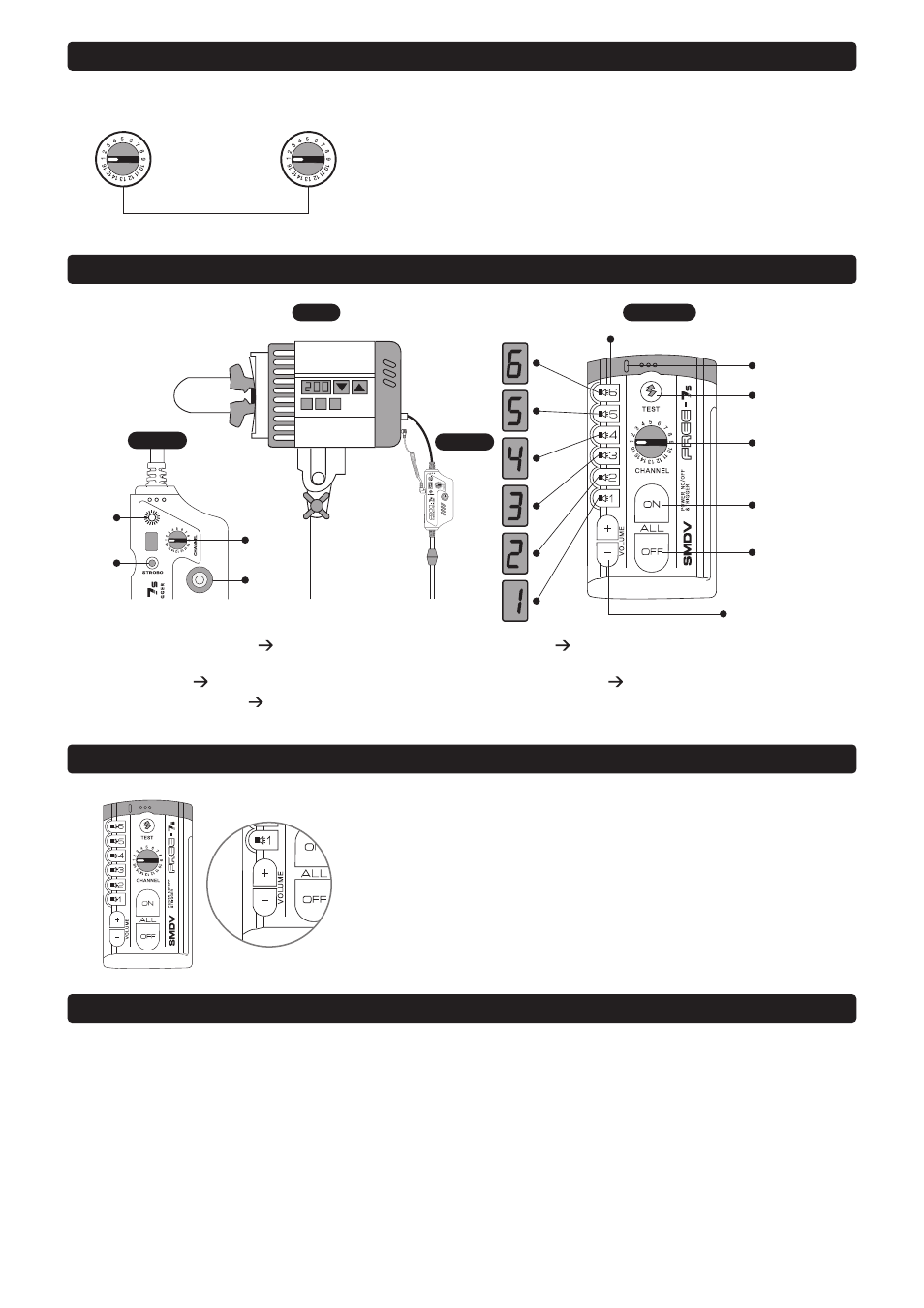

Changing Channels
Operation
Light Volume Control Button
Safety Warnings
Sync
Channel
Status LED
Individual Strobe on/off button
TEST Button
Sync Channel
All strobe ON
All Strobe OFF
Strobe Light Volume
Control Buttion
AC 100V-220V
Status
LED
Strobe
Channel
Button
Power
Button
Transmitter Channel
Adjust to the same channel
Receiver channel
Free-7s has 16 channels To operate, the transmitter and receiver must be
on the same channel. Select the desired channel on the transmitter and
the receiver. Maintain at least 50cm distance between the transmitter and
the receiver for anti RF interference.
Ensure your strobes are turned off. Connect single receiver to each strobe as indicated. Switch your strobe on.
Set a individual number(1-6) by pressing the strobe channel button (ex. Main strobe Ch. No.1, Sub strobe Ch. No.2, Spotlite Ch. No3, Background Ch.
No4, Ceiling Ch. No5) Ensure the sync channel on the receiver matches that of the transmitter. Once “All strobe On” button is pressed,
all the strobe will be powered on. Press individual strobe on button on the transmitter to turn on or off the individual strobe
● Do not remote instrument covers during operation
● Do not operate the Free-7s in the presence of flammable gases or fumes. Operation of any electrical instrument in such as environment creates
an extreme safely hazard.
●
Turn your equipment OFF before making electrical connections or changing batteries.
● Install fresh batteries into the Free-7s system. Weak batteries will shorten the distance of transmission and reception
● To avoid battery leakage, always remove the batteries within the units are not in sure for more than a month.
● Do not use or leave the devices in conditions of extreme heat, severe cold or high humidity.
A/S : SMDV TEL.+82-(0) 51-324-0788 FAX. +82-(0) 51-301-0788 1532, Nakdong-daero, Sasang-gu, Busan, Korea
www.smdv.co.kr E-mail: [email protected]
Light Volume Control
The Strobe should be provided light volume control function
This function can be useful when the strobe is located in high places.
Press the desired individual number on the transmitter for 2 seconds until the
RED LED is blinking then press +/- control button to change the light volme
(Note: Light Volume control function is operated with strobe which has
an inside receiver only.)
