Fotodiox SMDV Free-7s Radio Slave Trigger Kit User Manual
User guide, Transmitter set up receiver set up, Part reference
8
STROBO
CHANN
EL
P
O
WER
ON/O
F
F&T
RIGGER

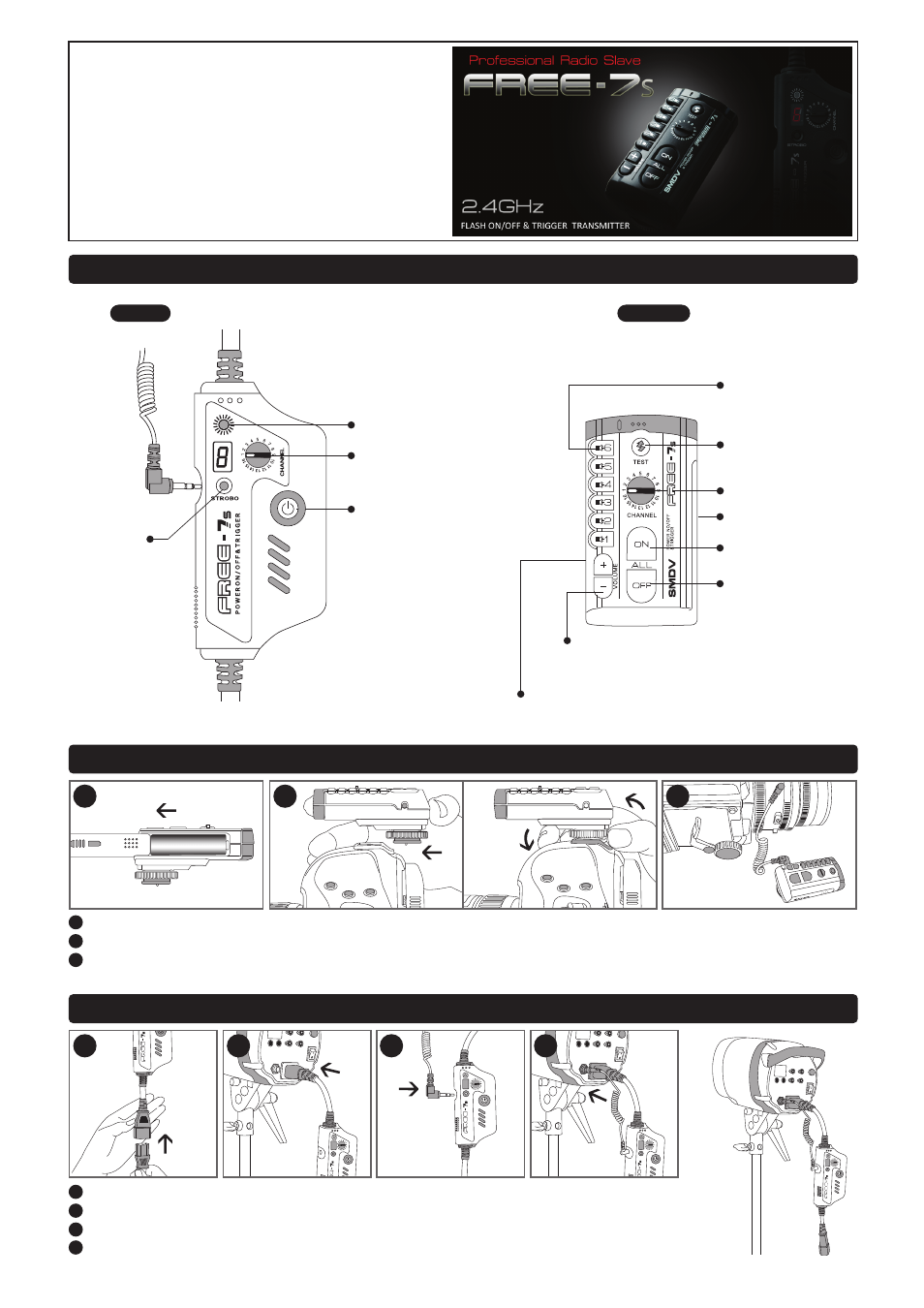

User Guide
Transmitter Set up
Receiver Set up
Model : FREE-7s
Frequency : 2.4GHz
Channels : 16
Max range : Up to 30meters
Status LED
TEST Button
Individual Strobe on/off button
Sync Channel
Battery Cover
All strobe ON
All Strobe OFF
Strobe Light Volume Control Buttion
2.5mm Sync Jack
AC 100V-220V
Sync Channel
Power Button
Strobe Channel Button
3.5mm
Sync Jack
Strobe Sync Jack
Connect to strobe
1
1
2
3
1
2
3
4
2
1
Install a AA 1.5V into the transmitter
Slide the transmitter into the hot shoe of your camera and tighten the lock wheel.
Use the included 2.5mm phone jack to connect the transmitter to your camera equipped with a PC jack
Unplug the AC power cord from the studio strobe and plug it into the Free-7s Receiver.
Insert the power cord of the receiver into the AC power socket of the strobe.
Connect the supplied 3.5mm sync cord to the receiver.
Insert the 3.5mm sync cord of the receiver into the sync socket of the strobe.
(If your strobe uses 6.3mm sync socket to connect the receiver, connect the supplied 6.3mm sync adapter to the 3.5mm mono plug cord.)
AA 1.5v
3
8
STROBO
CHANN
EL
P
O
WER
ON/
OFF&T
RIGGER
8
STROBO
CHAN
NEL
P
O
WER
ON/
OFF&TR
IGGER
8
STROBO
CHAN
N
EL
P
O
W
ER
ON
/
OF
F&TRIGGER
2
3
4
Part Reference
8
STROBO
C
H
A
N
N
E
L
P
O
W
ER
O
N
/
OF
F
&
TRI
G
GE
R
May sync speed : 1/250 sec
Battery Transmitter : 1x AAA 1.5V
Receiver : AC 100V-220V
Receiver
Transmitter
