Fotodiox Reflector Arm - Manual (Page 4)

5
a
ssemblinG the
R
efleCtoR

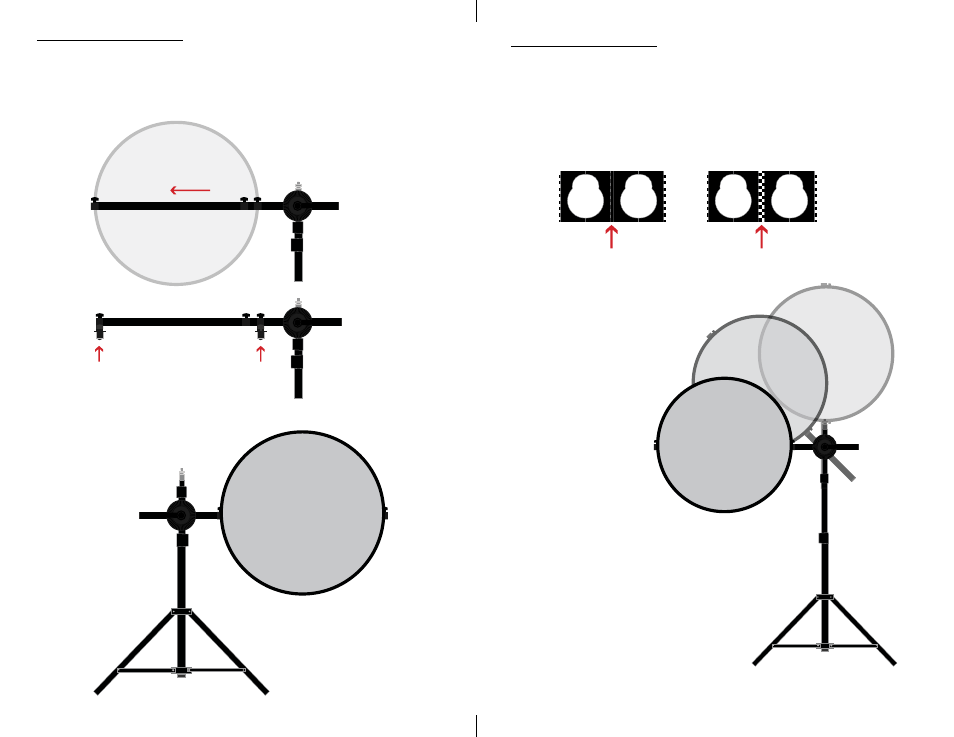

The Reflector
1
2
Extend the arm to the width of the
reflector disk by loosening the handles
Using the clips from the holding
arm, clip the disc’s metal frame
onto the arm
6
To adjust the angle of the reflector holding
arm, loosen the rotating heads enough to
unlock the teeth
Adjust the angle by rotating
the heads and locking them
in position
a
ssemblinG the
R
efleCtoR
The Rotating Heads
Teeth Locked Teeth Unlocked
1
2
