User Manual ► FEISOL CT-3372, CT-3372LV, CT-3472 and CT-3472LV
A.
Mount and Center Column Installation

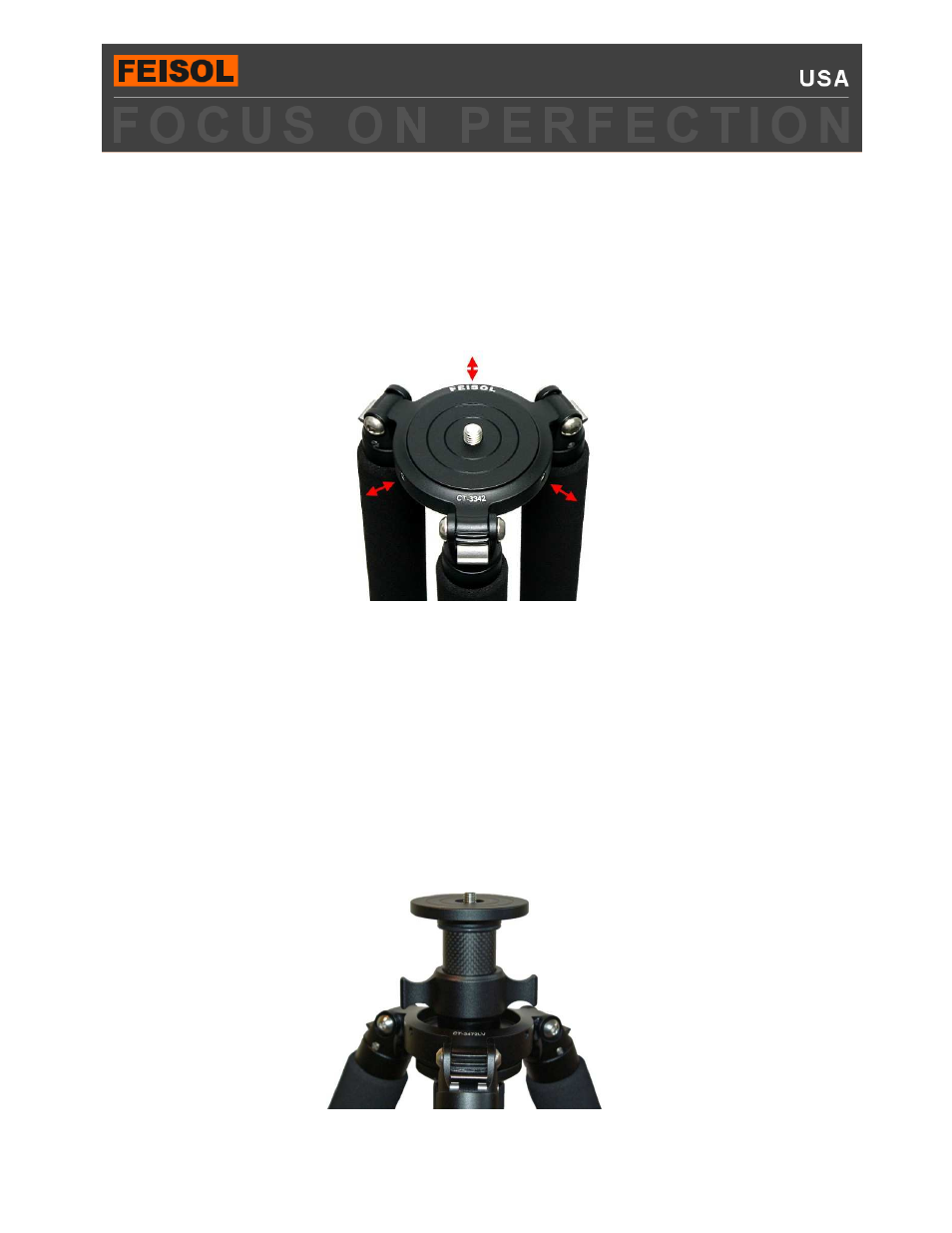

For exchanging mounts (flat Ball-Head mount / Center Column mount / Leveling Base) on
the tripod, unscrew the three counter-sunk screws on top of the mainframe using the
included Alan key (see picture), insert desired mount and re-tighten the three screws. To
avoid possible damage to the screws or tripod, please do not over-tighten them.
Note: For tripod models CT-3372LV and CT-3472LV a Leveling Center Column is pre-
installed. Before exchanging mounts, the Leveling Center Column needs to be removed
(see section B below)
B. Leveling Center Column Operation (models CT-3372LV and CT-3472LV only)
To extend the pre-installed Leveling Center Column upward, please unlock the twistlock
located just above the mainframe (see picture) by turning it half a turn in counterclockwise
direction. After the Center Column is extended to the desired height, turn the twistlock in
clockwise direction to securely lock the column into place.
