9
Plug
Plug
Cap
Probe

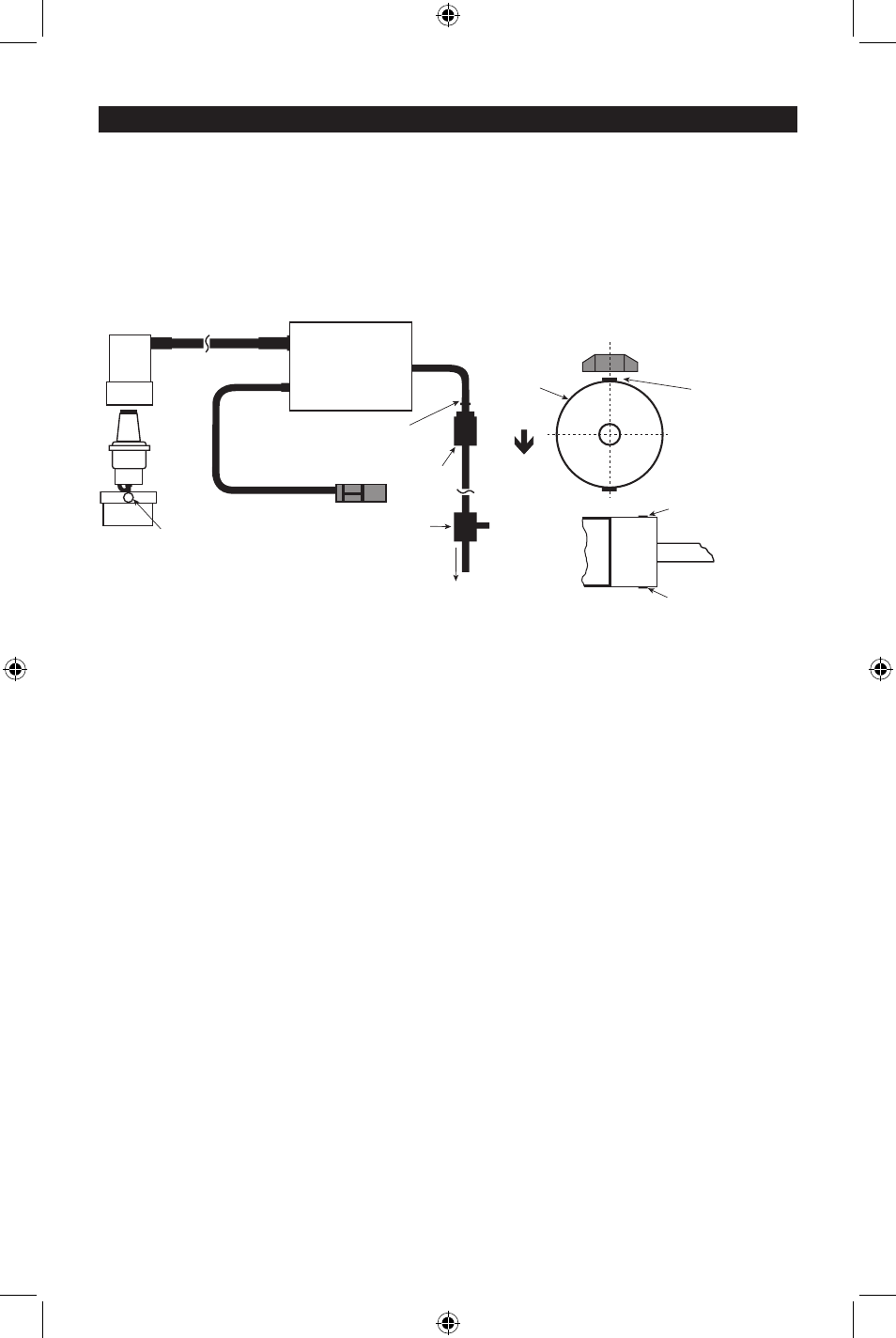

BASIC PROBE AND MAGNE T ADJUSTMENT
Magnet A
Magnet B
Magnet A
Magnet B
Probe
Propeller Driver
Direction
of Rotation
Propeller Driver
Distance of probe from magnet 0:5 mm
Screw securing the connector in required position
Red
Brown
Orange +
-
Data Out
Battery
Connector
To Battery
Switch
Magnet A position on the driver
corresponds to the
TOP DEAD CENTER of the piston.
Magnet B is oriented reversely.
Basic pre-ignition adjustment
is given by magnet A.
Magnet distance is 180 degrees.
Ignition
Module
Technical data
Battery Supply 4.8 Volts 600–1500mAh
Current Consumption 90–120mAh at Idle
500mAh/9000 rpm
Plug Voltage 18Kv
Weight 160 g
Dimension 55x50x25mm
Sensor Magnet Space max. 0.5mm (.020”)
Plug Spark Gap .7mm (.028”)
Working Temperature -10 to 85 deg C
Installation of the Ignition Unit Installation of the Ignition Unit Continued
