Included Content
Engine
EVOM6 Wraparound Inverted In-Cowl Muffler
EVOG620328 Exhaust Mount Bolts with Gasket M5 x 16
EVOG33350 Spark Plug (CM6)
EVOA107 Evolution/Spektrum™ Telemetry RPM Adapter Cable
EVOA121 Sintered Plastic Filter Clunk
Optional Items
EVOA100 Optical Electronic Ignition Kill Switch
EVOA108 Locking Fuel Can Cap
EVOX1001Q Evolution Synthetic 2-Cycle Oil
HAN155 Ultra Fuel Pump
HAN156 Tachometer
Secure the engine to the airplane firewall using either M6 or 1/4–20 bolts. Use spacers or
standoffs as needed to set the correct firewall-propeller distance according to the airplane
manufacturer’s instructions.
Refer to end of the manual for a full-size firewall template cutout.
WARNING: Tighten all engine mounting screws before each flight. If you do not tighten
the engine mounting screws, the screws may vibrate loose and cause the engine to
separate from the fuselage.
Installing the Engine

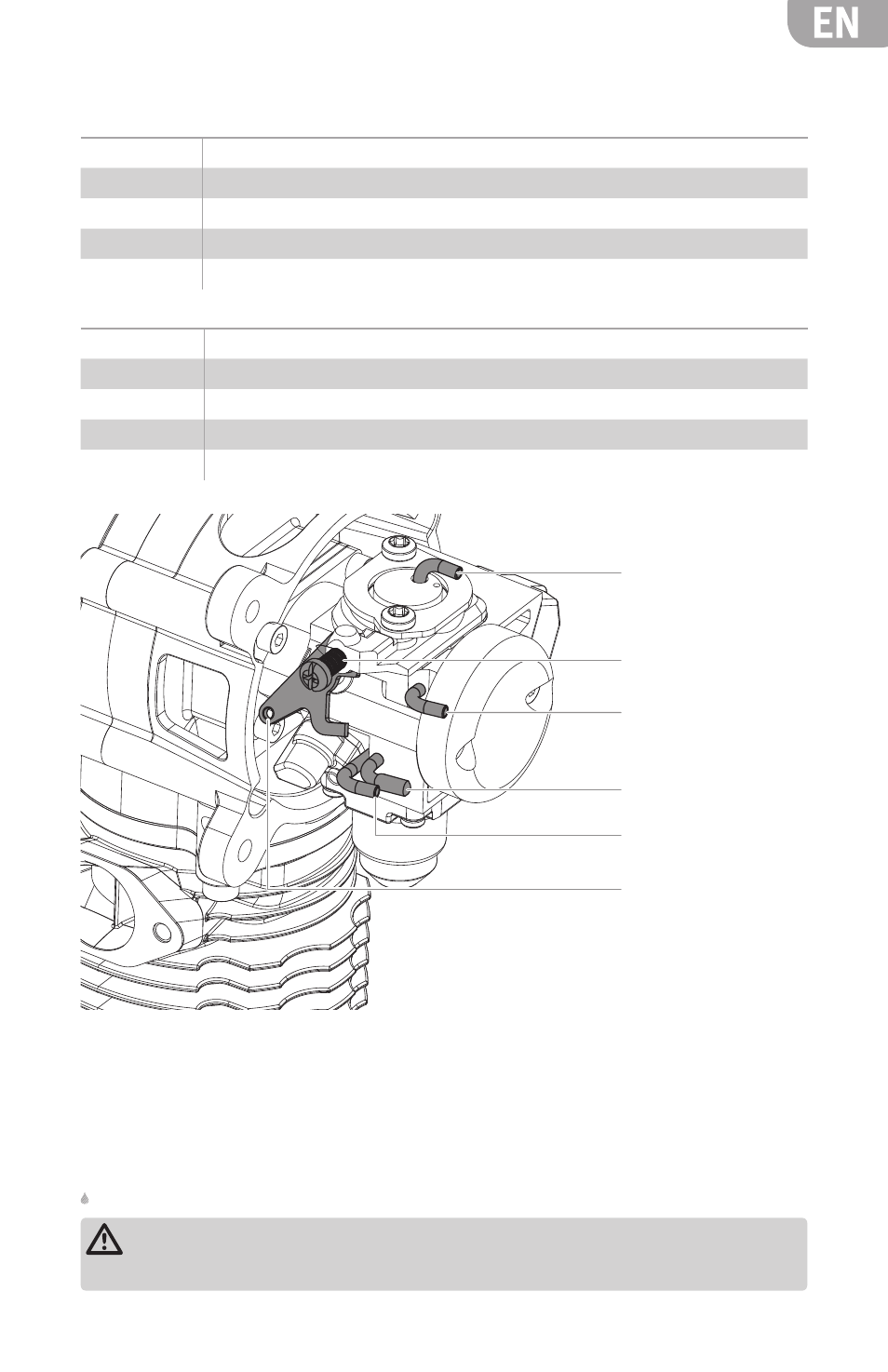

A. Prime Port
B. Idle Screw Adjustment
C. Fuel Feed (F)
D. Testing Port (T), Capped
E. Fuel Return (R)
f. Throttle Arm
