Mounting the Model 3164 Series | 13
4.0 Mounting the Model 3164 Series
Before connecting any components, follow the
safety information in the ETS-Lindgren
Product Information Bulletin included with your
shipment.
The Model 3164 Series antennas are precision
measurement devices. Handle your antenna
with care.
The Model 3164 Series Diagonal Dual Polarized Horns are designed to mount
directly on the shield line of a shielded anechoic chamber. Mounting features
include:

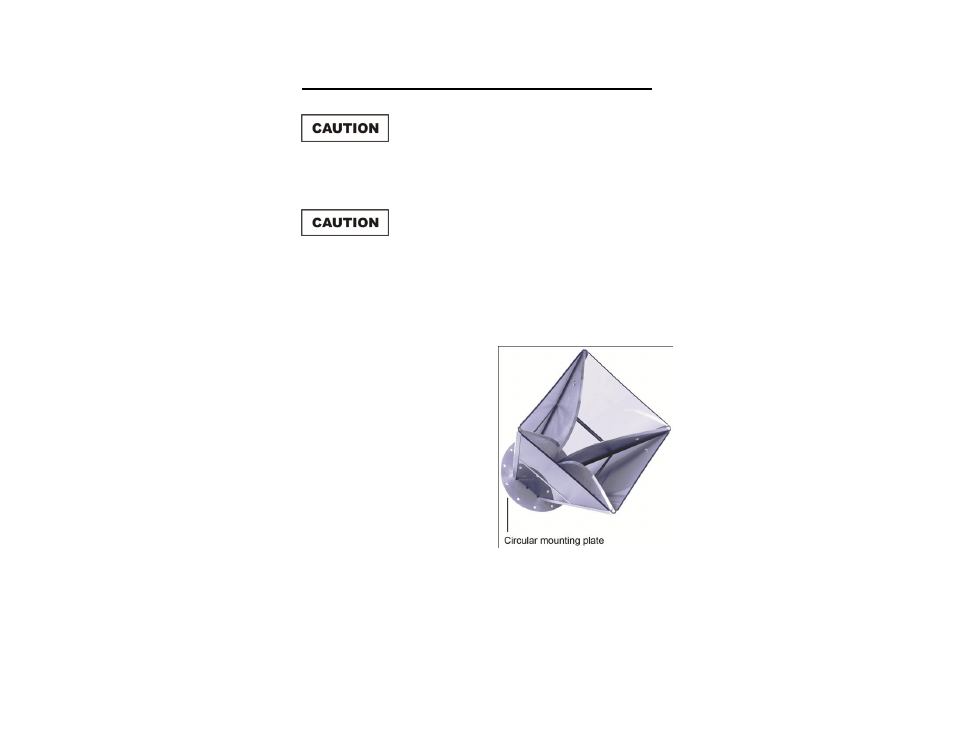

 Circular mounting plate —
The circular mounting plate
is provided as the primary
interface to the shielded
enclosure mount panel.
 Easy access to SMA connectors —By fastening the mounting plate to the
shielded enclosure, the two SMA connectors are on the outside of the
enclosure, providing easy access.
This also places the cables outside the enclosure, reducing the effect of the
cables on the measurement.
