A

SSEMBLE

/

A

TTACH

R

OD

E

LEMENT

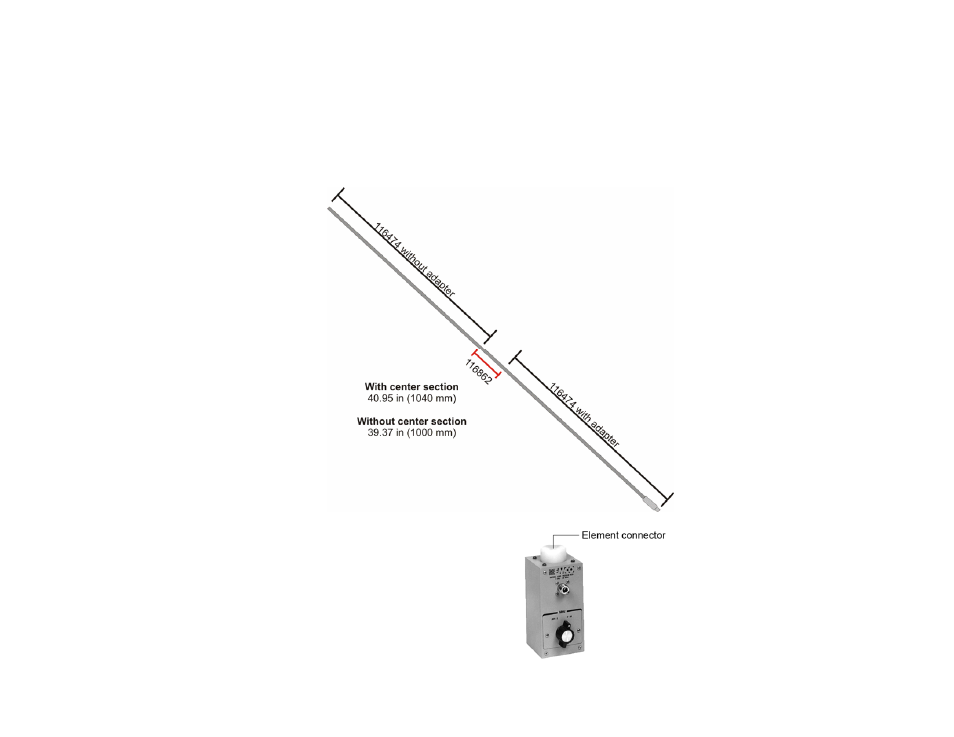

1.

Assemble the rod element:

•

For a finished length of 40.95 in (1040 mm)—Assemble (2) 116474

rod sections and (1) 116862 center section.

•

For a finished length of 39.37 in (1000 mm)—Assemble (2) 116474

rod sections. Do not use the 116862 center section.

2.

Attach the rod to the

element connector, passing

it through the hole in the

counterpoise.

Assembly, Mounting, and Operation

| 17
