ETS-Lindgren 3158 Biconical Antenna User Manual
Page 15
15
|
Assembly and Mounting Instructions
2.
Place the bottom of the balun in the mount plate. Insert two washers
and two hex bolts on both sides of the mount plate to firmly secure the
balun in place.
Do not cross thread any connections or
permanent damage could occur.
3.
Slide a belleville washer onto the threaded screw end of one of the
biconical elements.
4.
Line up the screw threads on the element with the receptacle hole on
the balun and turn the element until it is firmly secured in the balun.
5.
Repeat step 3 and step 4 for the remaining biconical element.
Damage to the pneumatic system may occur if
the air supply exceeds the maximum
50 psi–70 psi.
6.

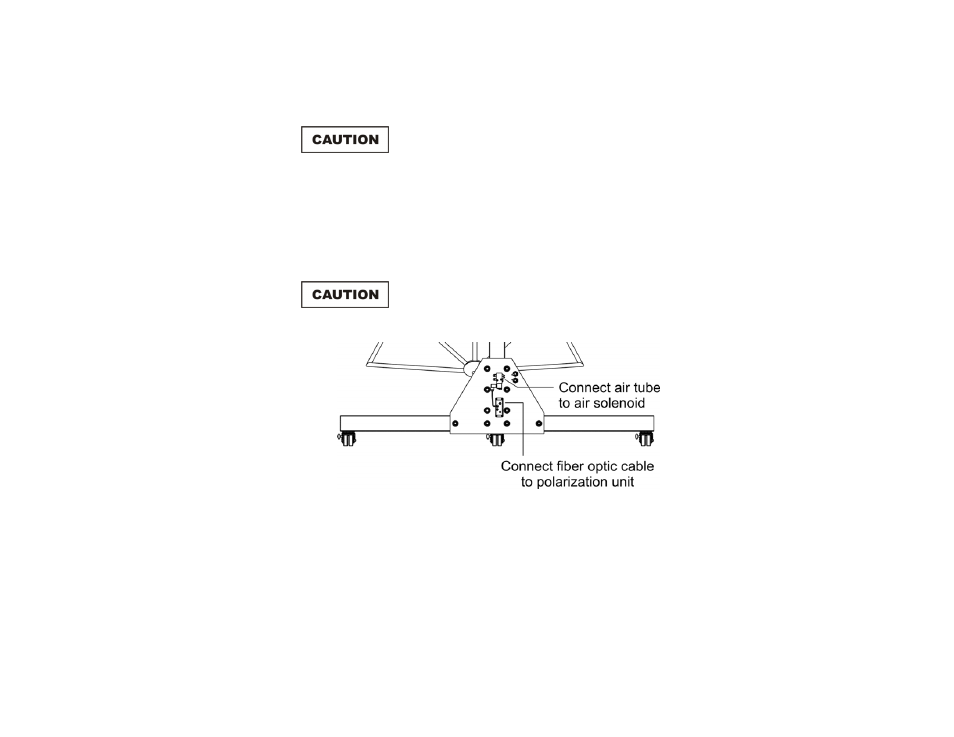

Connect the air solenoid tube to the air solenoid located on the back of
the pedestal. Connect the other end to your air supply.
