Assembly and Mounting Instructions | 14
The Model 3158 High Power Biconical Antenna is shipped unassembled, and
includes these parts:
• Balun
• Biconical element (2)
• Pedestal
• Belleville washer (2)
• Washer (4) and 5/16–1 1/4 hex bolt (4)
• Air solenoid nylon tube
• Fiber optic polarization cable

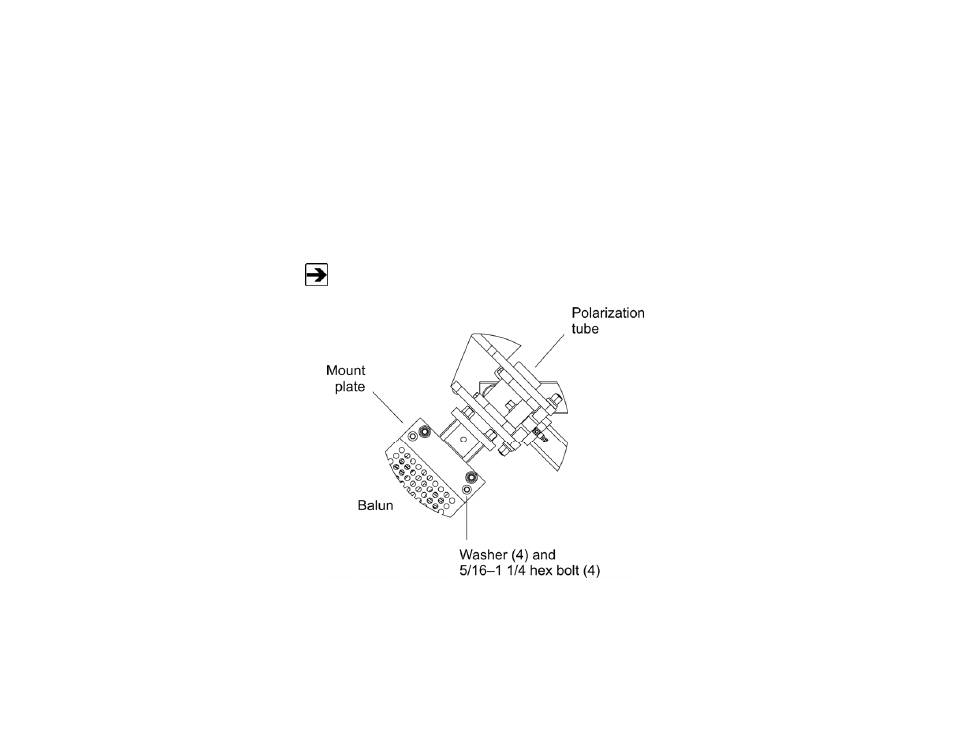

Due to the size of the antenna, you must mount the balun onto the
pedestal before you attach the elements.
1. Run your antenna cable through the polarization tube and attach it to
the connector on the bottom of the balun.
