7-TR

AND

M

AST

M

OUNTING

O

PTIONS

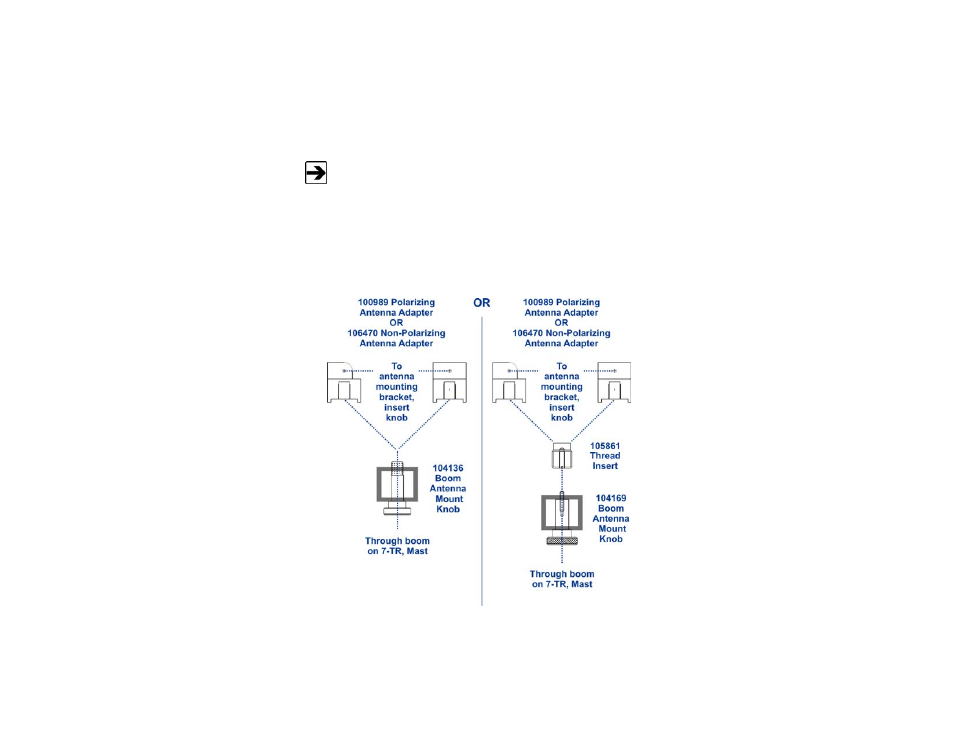

Following are options for mounting the Model 3147 onto an ETS-Lindgren 7-TR
Tripod or mast. Contact the ETS-Lindgren Sales Department for information on
ordering optional mounting hardware.

Mast refers to 2070 Series, 2075, and 2175 Antenna Towers.
7-TR refers to 109042, 108983, and 108507 booms:

• 109042 boom—Straight boom; for general antenna mounting on a

7-TR

• 108983 boom—Offset boom; for general antenna mounting on a

7-TR with pneumatic or manual polarization; can also be used to
mount stinger-type antennas
