8 | Introduction

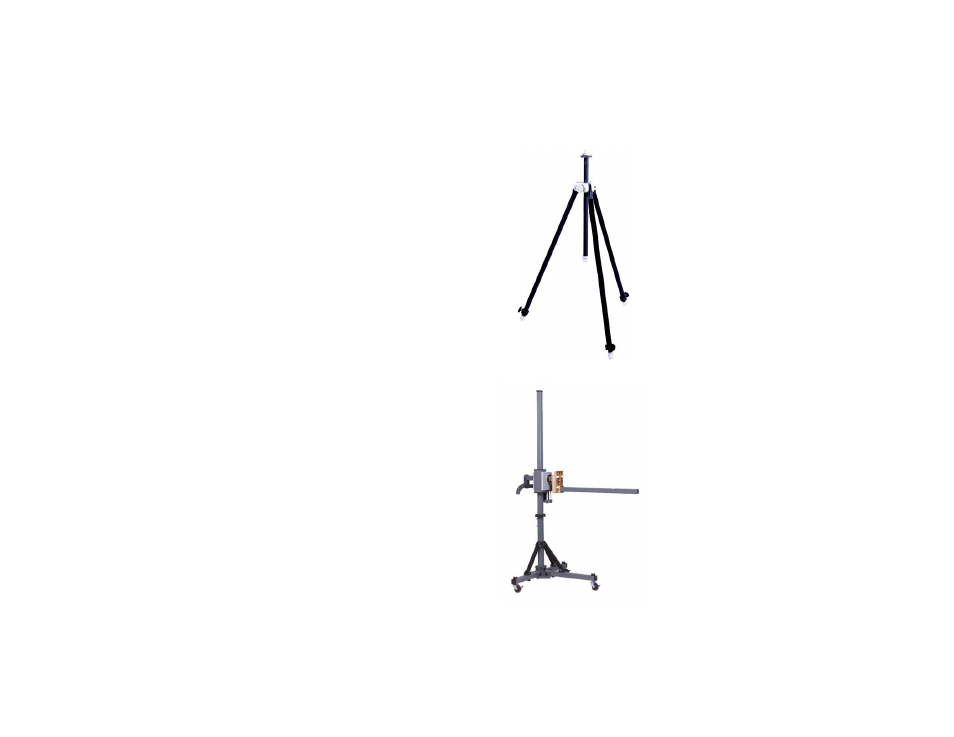

T RIPOD O PTIONS
ETS-Lindgren offers the following nonmetallic, non-reflective tripods for use at
both indoor and outdoor EMC test sites.
 Model 4-TR —Constructed of linen
phenolic and delrin, designed with an
adjustable center post for precise
height adjustments. Maximum height
is 2.0 m (80.0 in), and minimum height
is 94 cm (37.0 in). This tripod can
support up to an 11.8 kg (26.0 lb)
load.
 Model 7-TR —Constructed of PVC
and fiberglass components, providing
increased stability for physically large
antennas. The unique design allows
for quick assembly, disassembly, and
convenient storage. Allows several
different configurations, including
options for manual or pneumatic
polarization. Quick height adjustment
and locking wheels provide ease of
use during testing. Maximum height is
2.17 m (85.8 in), with a minimum
height of 0.8 m (31.8 in). This tripod
can support a 13.5 kg (30 lb) load.
