4.0 Assembly and Operation

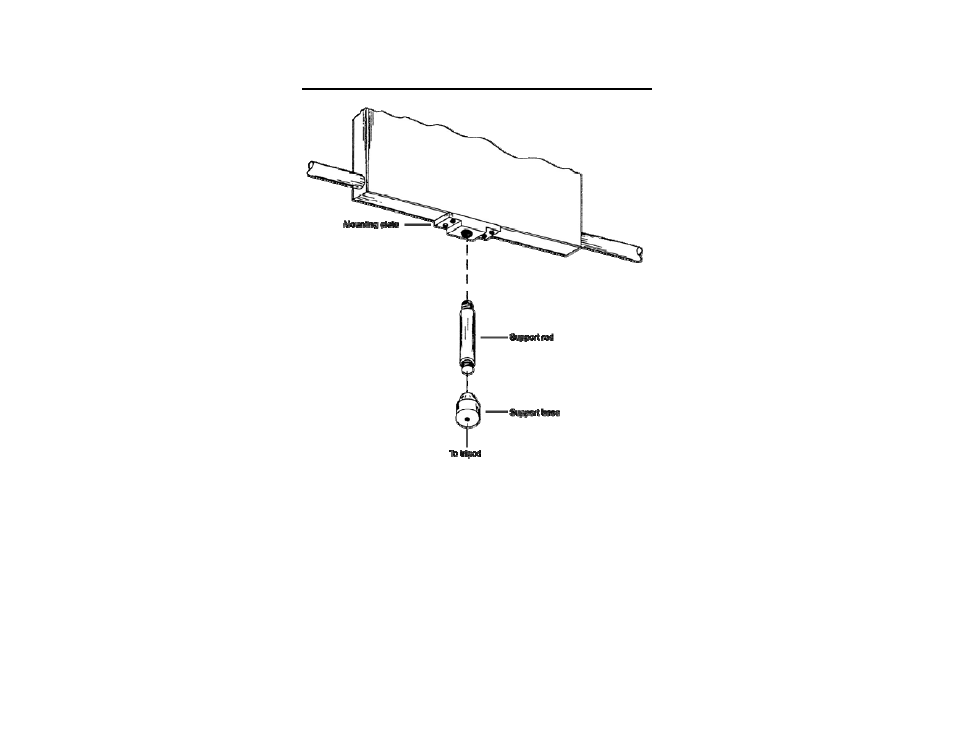

1. Attach the support rod to the mounting plate on the bottom of the
Model 3107B Parallel Element E-Field Generator by rotating it
clockwise into the plate until it is firmly connected.
2. Attach the support base to the support rod by rotating it clockwise onto
the rod until it is firmly connected.
3. Attach the Model 3107B assembly to a standard tripod (not included)
by rotating the support base clockwise onto the connector on the
tripod.
