EFCO 5XPT Series User Manual
Page 17
EFCO CORPORATION 6/8/2012 PART NO. YW44
Page 17 of 34

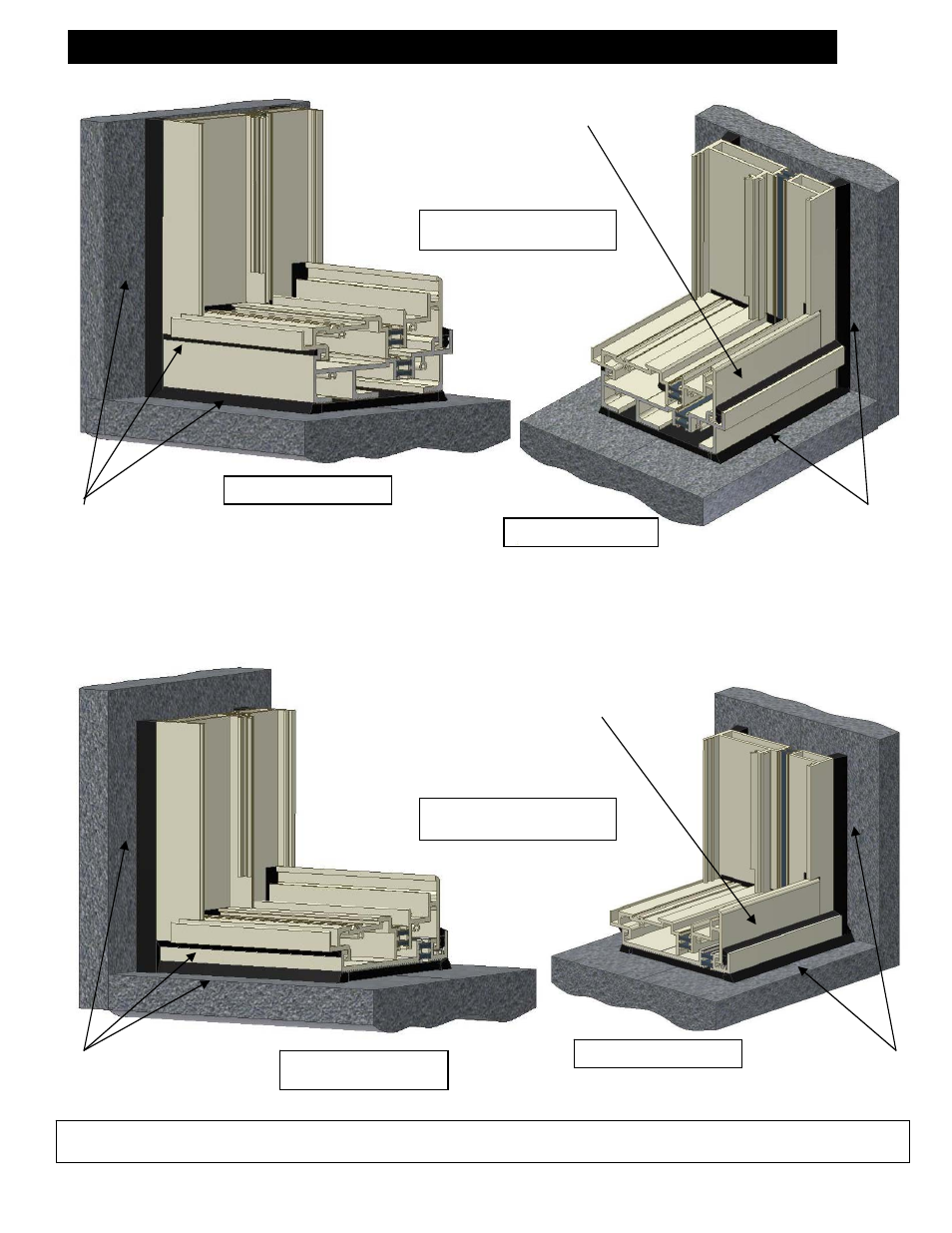

5XPT SLIDING GLASS DOOR INSTALLATION INSTRUCTIONS
Compatible Silicone
Sealant by Others
Note: All perimeter sealants must be continuous with one another and tooled with no voids.
EXTERIOR VIEW
INTERIOR VIEW
Compatible Silicone
Sealant Over Arrow
Shim by Others.
Compatible Silicone
Sealant by Others
EXTERIOR VIEW
INTERIOR VIEW
Fig. P
Compatible Silicone
Sealant by Others
Compatible Silicone
Sealant by Others
Compatible Silicone
Sealant Over Arrow
Shim by Others.
3S91 SILL STARTER
3S90
SILL STARTER
