EFCO CORPORATION 3/21/2013 PART NO. YW44 Page 14 of 34
5XPT SLIDING GLASS DOOR INSTALLATION INSTRUCTIONS
3. Position the door frame into the opening above the sill starter. Now interlock the door frame
sill with the sill starter. Adjust the door, side to side, so as to have an equal caulk width at
both jambs. Drive in the continuous arrow shim (WNA3) into cavity between door frame sill
and sill starter. Sealant that is required over the arrow shim will be addressed later in these
instructions. Preparations for anchorage of the jambs are now ready. (See Fig. J)
4. Drive in the continuous arrow shim (WNA3) between the door frame and the subhead on the
interior. (See Fig. K) Sealant that is required over the arrow shim will be addressed later in
these instructions.

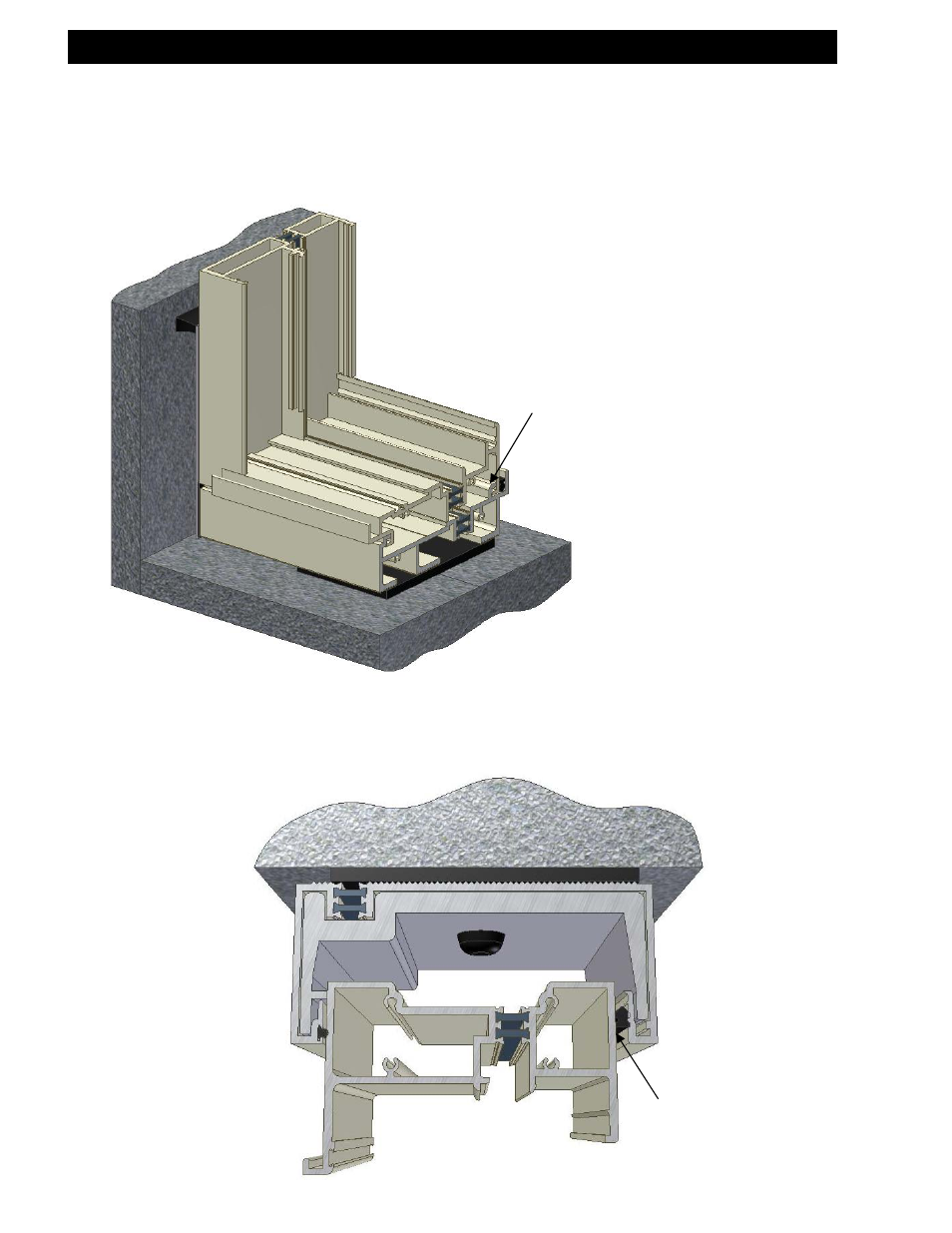

Fig. J
WNA3 ARROW SHIM
Fig. K
WNA3 Arrow
Shim
