Drilling template, Template, Locating & drilling – EFCO 403 Series Roto Vent for Storefront User Manual
Page 6

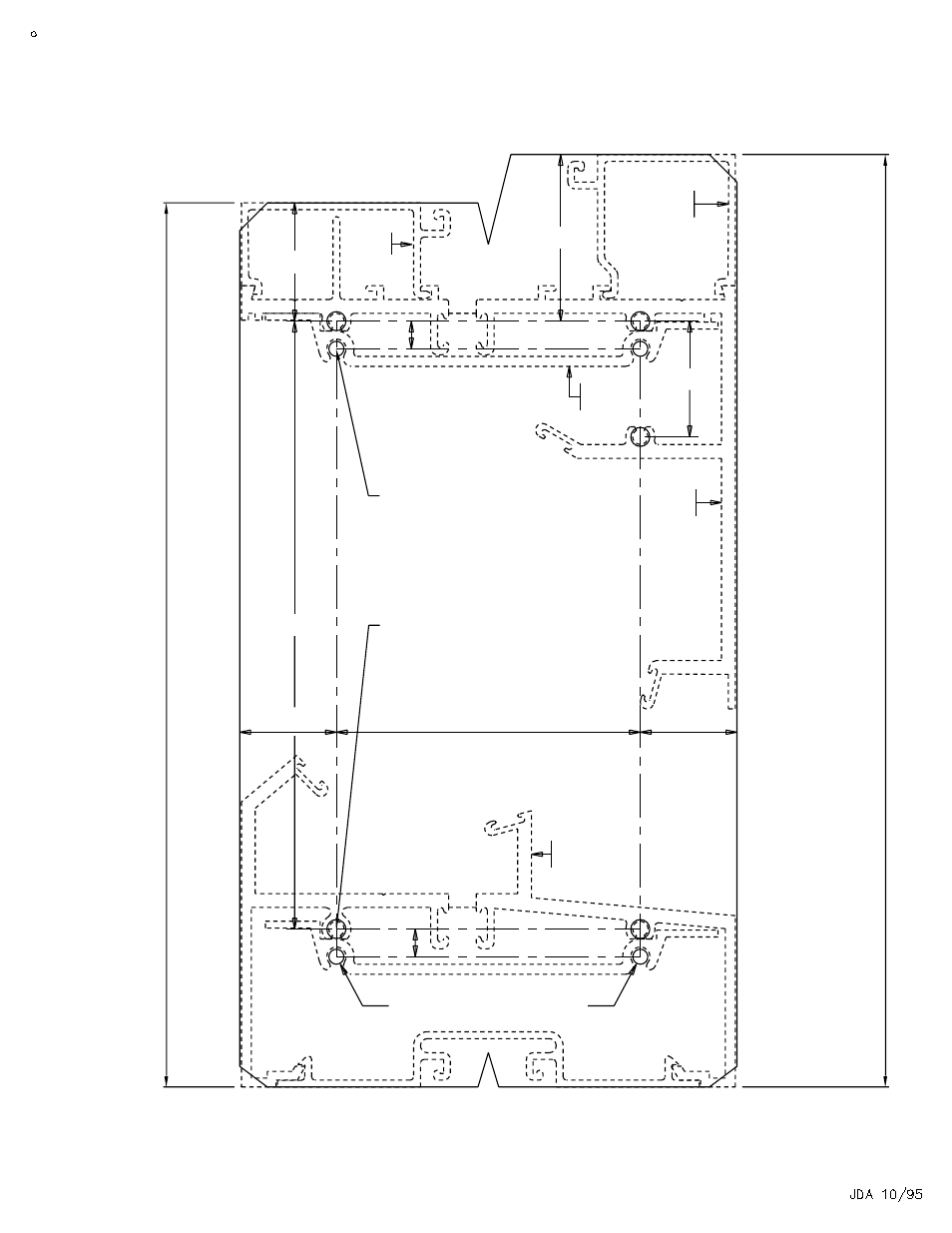

(5) PLACES
TEMPLATE
SECTION IV -
LOCATING & DRILLING
.172 DIA. (#18 DRILL)
SCREW SPLINE HOLES
SET EDGES OF TEMPLATE FLUSH WITH SIDES OF VERTICALS
CUT OUT AND USE FOR LOCATING HOLES
SHEAR BLOCK
OR
SCREW SPLINE
SHEAR BLOCK HOLES
(4) PLACES
.136 DIA. (#29 DRILL)
SHEAR BLOCK HOLES
1.508
1.047
.250
.250
5.500
1.070
.875
2.750
.875
9959
9952
K159
9129
9229
PAGE 5
INTERIOR - 401 SYSTEM
EXTERIOR - 402/403 SYSTEMS
