I N S T A L L A T I O N G U I D E
Installation
Version 2 Tire Temperature Sensor Installation Guide
3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION
This section contains instructions for installing the tire temperature sensor.
A SSEMBLING THE S ENSOR
1 Mount the sensor bracket to the sensor bracket peg using the 10-32 screw.

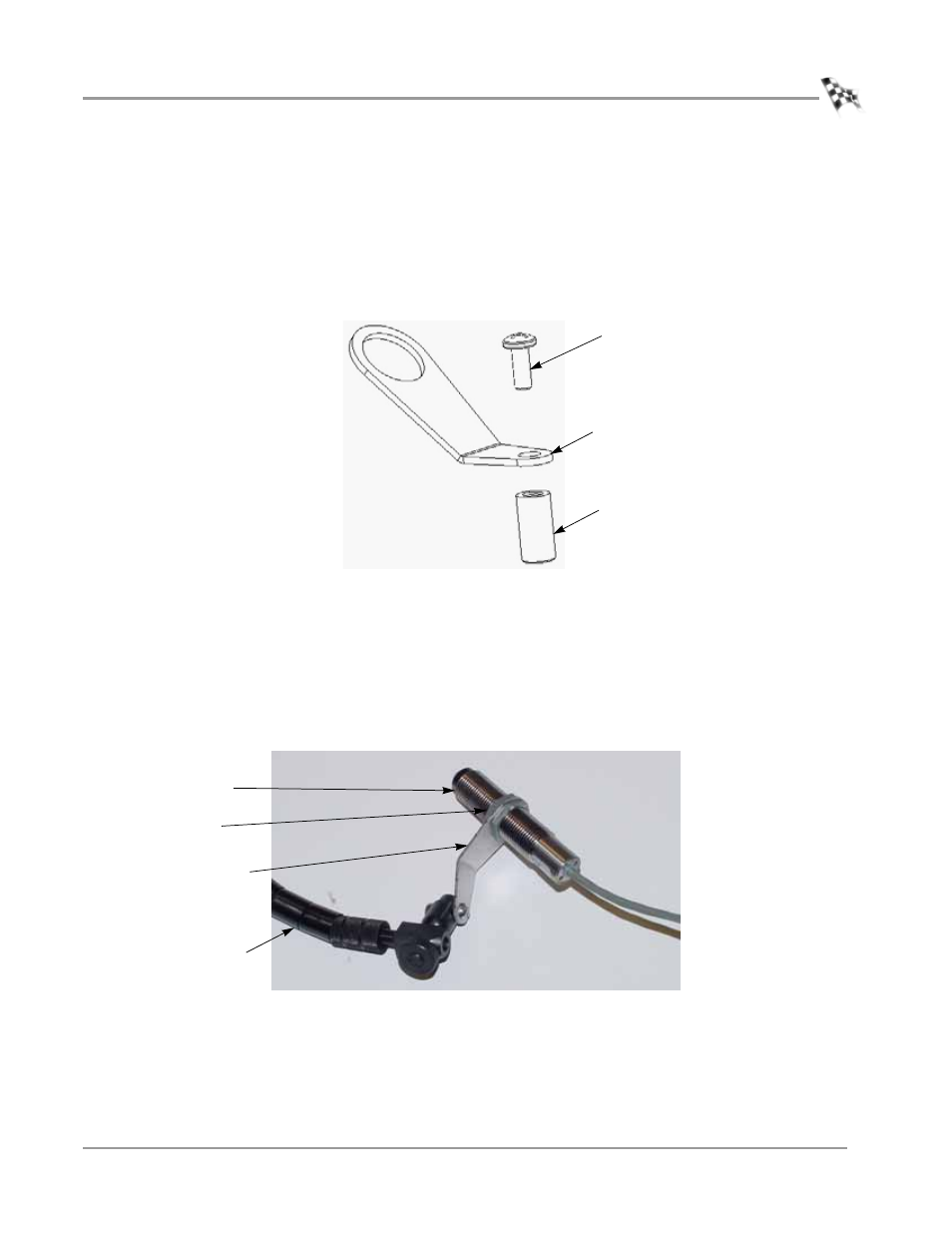

Figure 2: Mount the Sensor Bracket
2 Mount the sensor to the sensor bracket.
2a
Remove one of the nuts from the sensor.
2b Slip the sensor bracket on the sensor.
2c Secure the sensor bracket to the sensor using the nut.
3 Mount the sensor bracket to the magnetic base.
Figure 3: Mount the Sensor to the Bracket and Magnetic Base
10-32 screw
sensor bracket
sensor bracket peg
magnetic base
sensor
nut
sensor bracket
