Tire Temperature Sensor Installation Guide
T I R E TE M P E R A T U R E S E N S O R
Introduction
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INTRODUCTION
The tire temperature sensor allows you to monitor the temperature of the motorcycle
tire.
T ECHNICAL S UPPORT
For assistance, please contact Dynojet Technical Support at 1-800-992-3525, or write
to Dynojet Research at 2191 Mendenhall Drive, North Las Vegas, NV 89081.
Visit us on the World Wide Web at www.dynojet.com where Dynojet provides state of
the art technical support, on-line shopping, 3D visualizations, and press releases
about our latest product line.
P ARTS
The following table shows all of the parts included in the Tire Temperature Sensor
Installation kit. Check your kit against the parts listed to make sure you have received
all of the parts. If any part is missing, contact Dynojet Technical Support.

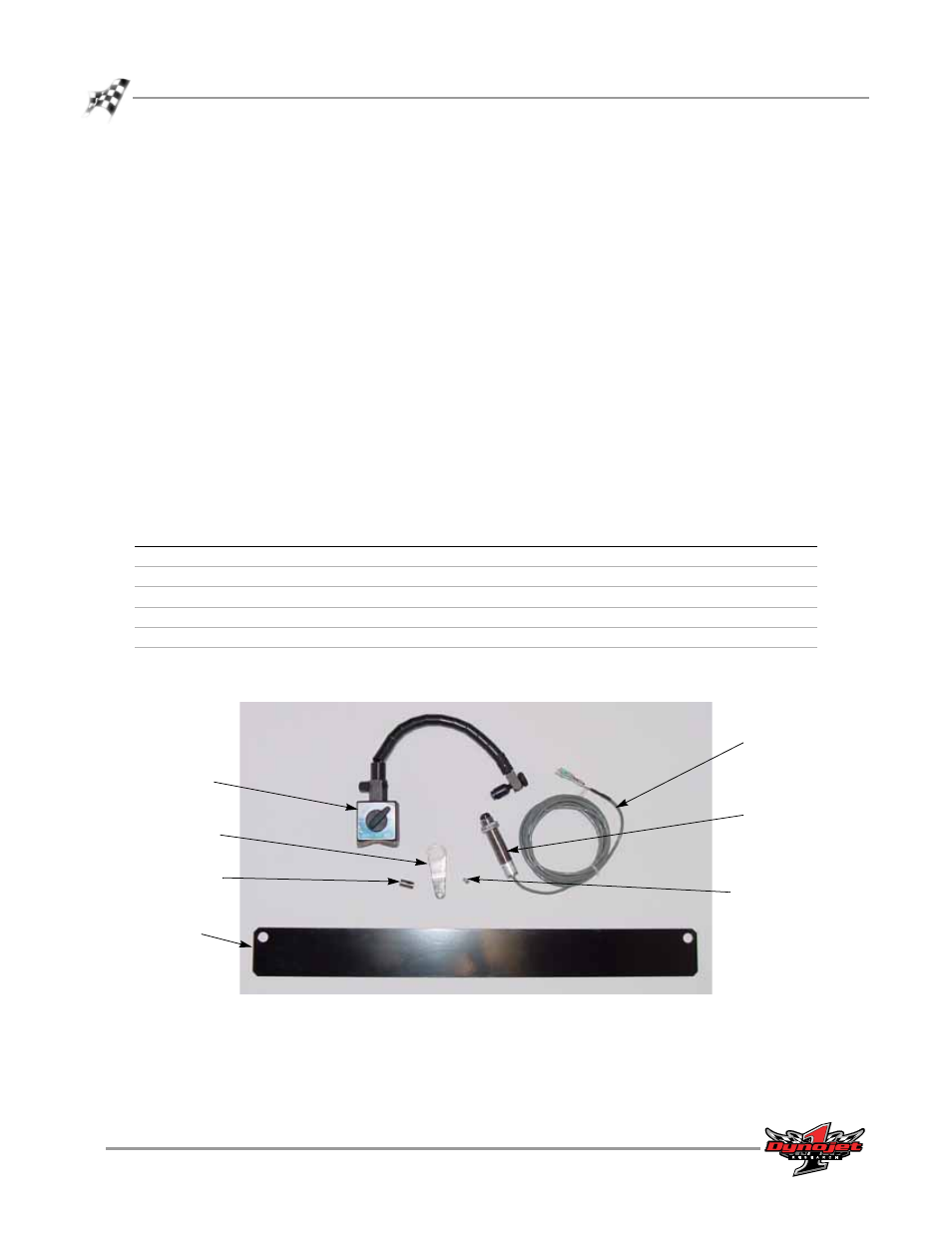

Figure 1: Temperature Sensor Parts
part number description quantity
21696202 Mounting Bracket 1
35130220 Magnetic Base 1
21696201 Sensor Bracket 1
21696203 Sensor Bracket Peg 1
49950030 Sensor, Sensor Cable 1
36340422 Screw, 10-32 1
sensor cable
mounting
bracket
sensor
magnetic base
sensor bracket
peg
sensor bracket
10-32 screw
