4
4. INSTALLATION
4.1 ELECTRICAL CONNECTION
• Connection to the electrical power source must be done according to all state and local codes. Before
connecting your oven, make sure that the voltage and the amps comply with those stated on the data plate
of your oven. Avoid using patch cords and multiple jacks.
• The appliance must be placed so that the connection plug to the outlet can be easily reached.
When the appliance is in operation, the power supply voltage must not diverge from the value of the
nominal voltage, written on the technical data plate, by more than + or – 10%.
• Ovens are equipped with cordset and NEMA plug (single phase; 120V or 208-240V, depending on oven
model.) It is sufficient to insert the plug in the proper outlet (the outlet must be suitable for the plug
assembled on the oven.)
4.2 WATER CONNECTION (available on all current manual models EXCEPT XAF-103 per below)
• CONNECTION TO THE WATER NET: Full Size manual oven models (XAF-183 & XAF-193)
come with an electrovalve for direct water connection.
♦ A mechanical filter must be placed between the water system and the water connection of the oven.
♦ Before connecting the water pipe to the oven, please allow a suitable amount of water flow, in order to
clean the duct from any residue.
♦ The water used in the oven must have a nominal pressure value between 0.5 and 2 bars.
♦ The water must have a hardness between 0.5° and 5°F (to avoid formation of lime deposits inside the
electric valve and inside the cavity).
♦ Cadco suggests you use a decalcification filter in order to maintain fan balance.
• AUXILIARY WATER PUMP (FOR CONNECTION TO AN EXTERNAL WATER TANK: ):
Half Size manual ovens (XAF-113 & XAF-133) come with an Auxiliary Water Pump included, for
manually pumping water from a bucket, water tank, or other container. WARNING: Before using the
water pump, always make sure that there is water in the tank. Damage to the pump can occur if it is
operated without water in the tank and it will void your warranty. If the pump makes “groaning” sounds,
it is probably due to lack of water in the tank or the pump is simply running an air bubble through the
system.

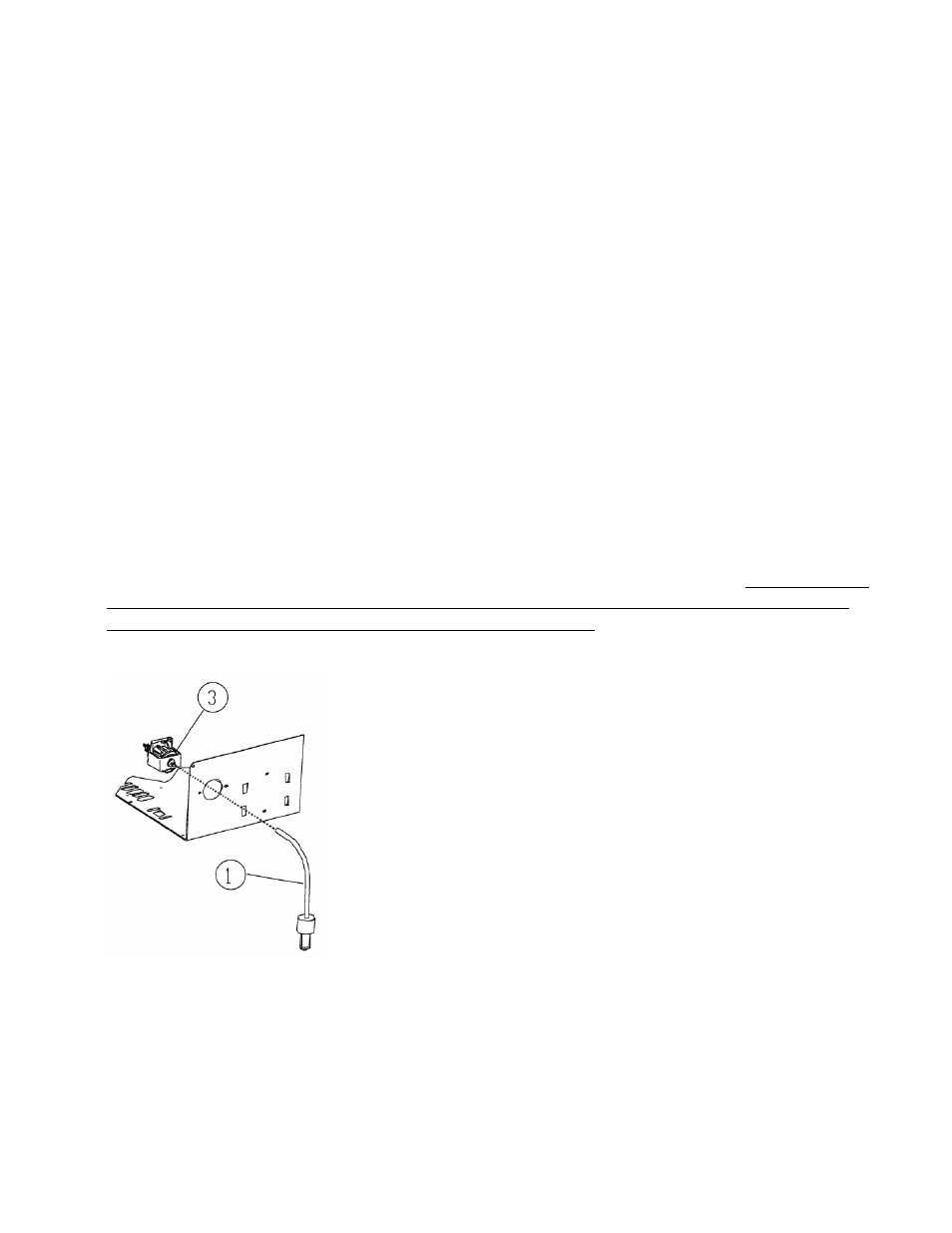

To install:
1) Part (1) is found in the plastic bag inside your oven cavity,
along with the oven feet.)
2) Connect the pipe (1) of the filter to the pump (3) by pushing it
onto the nipple of the pump sticking out of the back of the
oven, as shown.
3) Insert the filter into a water tank (such as Cadco model
XC655) or other water container.
4) Connect oven to power supply.
5) Use only decalcified water.
• Hot air and steam will exit the oven from the back exhaust port. During most cooking cycles, you will
have hot and humid exhaust coming out from this exhaust port (temperature and humidity of this exhaust
depend on the cooking parameters being used.) The steam that comes out of the exhaust port can also be
vented outside if desired.
