PART NO.
865686
865687
865693
865694
865695
865697
865786
865787
865988
865990
865991
867082
867083
867084
867085
867086
867388
NAME OF PARTS
Governor Spider *
Governor Center *
Front Bearing Plate
Rotor
Exhaust Deflector
Front Bearing Retainer
Wheel Guard (3")
Wheel Guard (2-1/2")
Wheel Guard (4")
Driving Flange (4")
Outer Flange (4")
Governor Spring - See Chart
Governor Spring - See Chart
Governor Spring - See Chart
Governor Spring - See Chart
Governor Adjustment Screw
Governor Weight Pin *
PART NO.
812164
842970
844280
847095
864232
864234
864236
864735
864821
865653
865655
865657
865658
865659
865660
865661
865663
NAME OF PARTS
Cylinder Pin
Key
Arbor Nut
Rear Rotor Bearing
Rear Bearing Plate
Rotor Blades
Cylinder
"O"-Ring
Safety Lock Pin *
Driving Flange
Exhaust Deflector Retainer Ring
Rotor Collar
Front Rotor Bearing
Outer Flange
Dust Seal
Arbor Collar Grip Ring
Governor Weight *
QTY.
1
1
1
1
1
4
1
1
2
1
1
1
1
1
1
1
2
QTY.
1
1
1
1
1
4
1
1
2
1
1
1
1
1
1
1
2
PARTS LIST — 15G MOTOR & GOVERNOR
SERVICE INSTRUCTIONS FOR 15G MOTOR & GOVERNOR

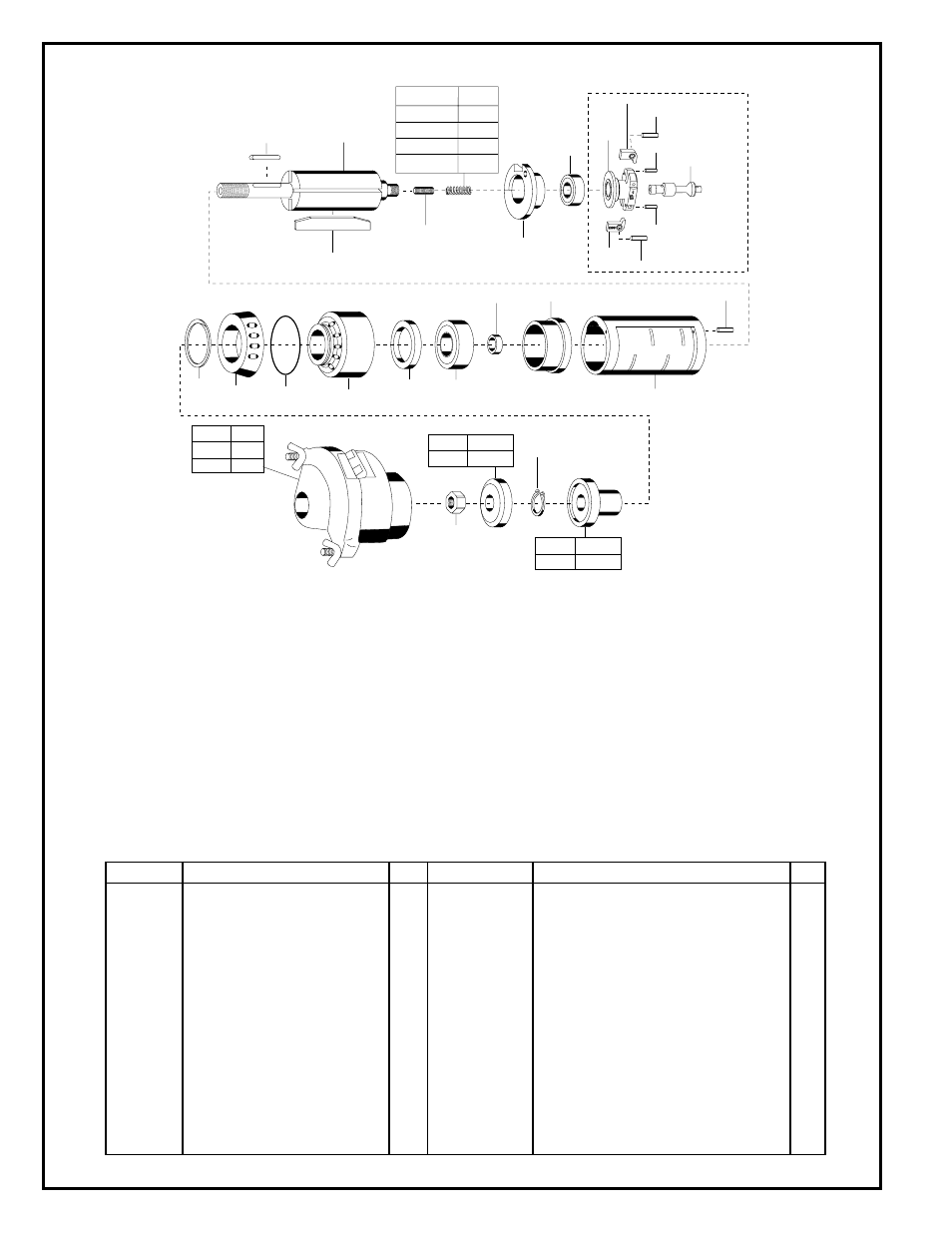

15G MOTOR & GOVERNOR
*These parts can be purchased as a subassembly using number: 861176
DISASSEMBLY
Clamp the cylinder 864236, lightly in a soft jawed vise and tap the rotor
865694, out of the front rotor bearing 865658. This will allow the front
rotor bearing, front bearing plate, 865693, rotor collar, 865657, cylinder,
and rotor blades, 864234, to be removed from the rotor. Clamp the rotor
in the vise and unscrew the governor (left hand threads). The governor
adjusting screw, 867086, may now be removed from the rear of the
rotor.
REASSEMBLY
The motor is reassembled in the reverse order of disassembly. Wash
all parts thoroughly ina solvent and visually inspect for damage or wear.
Check bearings for wear which can be detected by excessive end play,
or roughness of the bearings which indicates a brinelled condition. Pack
both rotor bearings with a good grade of No. 2 Moly Grease. Particular
attention should be paid to the governor assembly, replacing any of its'
parts that show wear or damage. It is recommended that new rotor
blades be installed at each repair cycle. If not replaced, the used ones
must measure a minimum of 7/32" (5.5mm) at both ends.Failure of
these parts could cause damage to more expensive components. Also,
be sure that the blades are no longer than the rotor.
The rotor in this tool must be set by means of the rotor collar, 865657,
so that when assembled, there is .0015" clearance between the front
end of the rotor and the face of the front bearing plate To properly set
the rotor collar, assemble the front bearing (shield toward backhead)
into the front bearing plate. Measure the depth of the inner race from the
face of the bearing plate. Select, or fit by sanding, an rotor collar .0015"
larger than this dimension. Governor center 865687, governor weights
865663, and governor pins No. 867388, should be checked periodically
for wear and replaced if excessively worn.
864234
8656994
847095
864236
812164 865693
867086
865663
864821
These parts
are included
in governor
subassembly
865687
864821
867388
865663
865686
867388
865657
865658 865660
842970
865697 864735 865695
865655
RPM Part No.
9000 867082
12000 867083
14000 867084
18000 867085
864232
865653 2 1/2", 3"
865990 4"
844280
865661
865659 2 1/2", 3"
865991 4"
865787 2 1/2"
865786 3"
865988 4"
