Spindle End Nut
Wheel
Blotters
865661
Driving Flange
Grip Ring
Wheel Guard Retainer Bolt
Torque to 30 to 40 in. lbs.
Wheel Guard
Retainer Bolt Nut
842970
Driving Flange Key
CAUTION LABELS
(2 Required 202595 and 202596)
WARNING
Recessed Flanges (Outer)
Wheel Dia. Part No.
2-1/2"(62mm), 3"(75mm) 865659
4"(100mm) 865991
Recessed Flanges (Driving)
Wheel Dia. Part No.
2-1/2"(62mm), 3"(75mm) 865653
4"(100mm) 865990
Wheel Guard
Wheel Dia. Part No.
2-1/2"(62mm) 865787
3"(75mm) 865786
4"(100mm) 865988
202596
! CAUTION
DO NOT USE WHEELS THAT HAVE BEEN DROPPED,
DAMAGED, OR IMPROPERLY STORED Ñ THEY ARE
DANGEROUS
USE ONLY WHEELS WITH SPEED RATING EQUAL TO OR
GREATER THAN ACTUAL FREE RUNNING TOOL SPEED
CHECK TOOL SPEED WITH TACHOMETER BEFORE
EVERY WHEEL CHANGE
READ THE MANUFACTURER'S OPERATING INSTRUCTIONS
AND SAFETY INSTRUCTIONS BEFORE USING THIS
GRINDER
202595
! CAUTION
DO NOT REMOVE THIS GUARD Ñ IT IS FOR
YOUR PROTECTION
USE THIS GUARD ONLY WITH TYPE 1
WHEELS
DO NOT OVERTIGHTEN SPINDLE END NUT
FLANGES MUST BE AT LEAST 1/3 DIAMETER
OF WHEEL
AVOID INHALING DUST RESULTING FROM
THE GRINDING OPERATION
ALWAYS USE EYE AND HEARING PROTECTION
Wheel
Blotters
Recessed Flanges
Flange Diameters
Identical
Cleco
MODEL SERIAL NO. CAUTION
Spindle
End Nut
Recessed Flanges
Flange Diameters
Identical
Grinding
Face
Proper
Wheel Guard
Retainer Bolt
TYPE 1

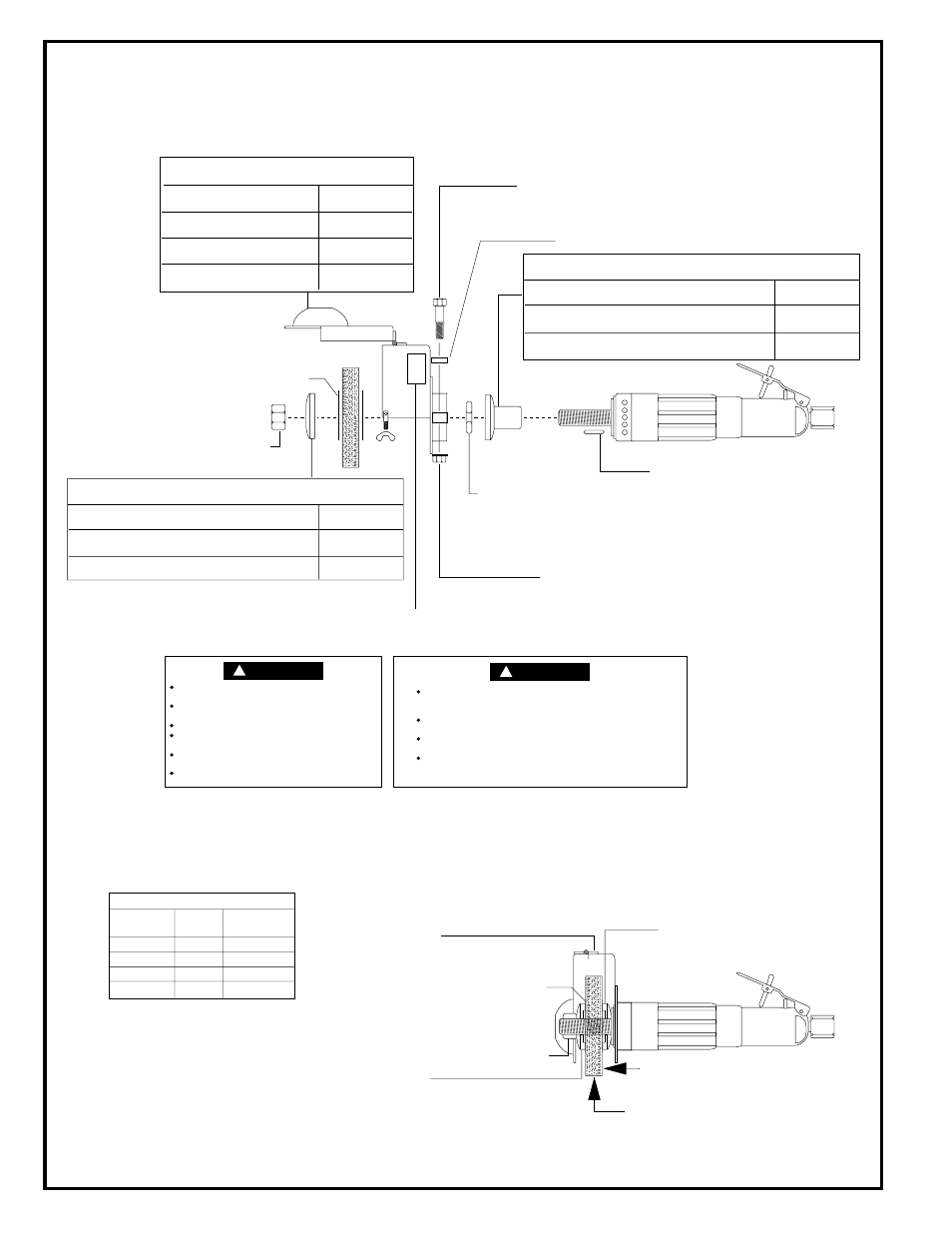

WHEEL GUARD MOUNTING
TYPE 1
PROPER GRINDING WHEEL MOUNTING
Lock Washer
Type 1 Wheel Capacity
Model Wheel Wheel
Dia. Thickness
15GL-180 2" - 3" 1/16" - 1/2"
15GL-140 2" - 4" 1/16" - 1/2"
15GL-120 2" - 4" 1/16" - 1/2"
15GL-90 2" - 4" 1/16" - 1/2"
Flange dia. should be minimum
of 1/3 wheel dia.
Avoid Side Loads
Use Only Wheels With Speed
Rating Above Tool Speed
