Mini PCI-E to PCI-E Adapter User’s Manual
Page 2
FAE2009MP2A_04 ©2009 Bplus Technology
1.0 Introduction
The MP2A passive adapter is designed for desktop PCs that convert Mini-Card
to USB port or standard PCI-Express 1x slot.
You can insert your USB type minicard to this adapter then plug to USB port
through USB cable.
Or insert your PCI-E type mini-card into this adapter then insert to PCI-E 1x
connector.
2.0 Interface
Mini PCI-E to PCI-E Adapter as shown,

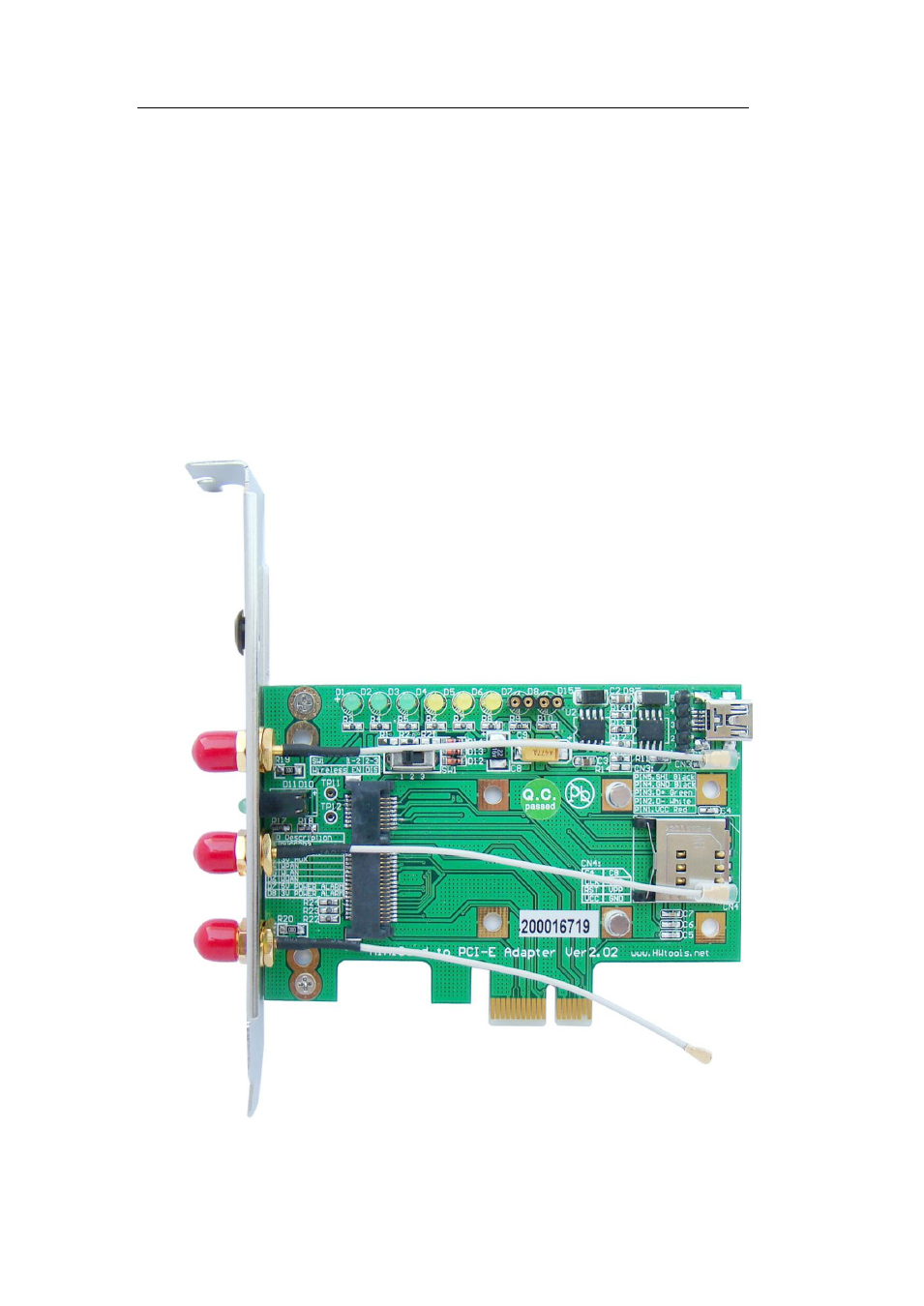

Figure-1 Mini PCI-E to PCI-E Adapter (heads)
