Mini PCI-E to PCI-E Adapter User’s Manual
Page 2
FAE2009MP1_01 ©2009 Aeneas Electronics
1.0 Introduction
The Mini PCI-E to PCI-E Adapter is designed for desktop PC that converts PCI
Express Mini Card to USB and standard PCI-Express 1x slot.
This adapter allows you to use your existing PCI-E slot or USB port of your
M/B.
It includes mini PCI-E connector and Mini-USB port access styles.
2.0 Interface
Mini PCI-E to PCI-E Adapter as shown,

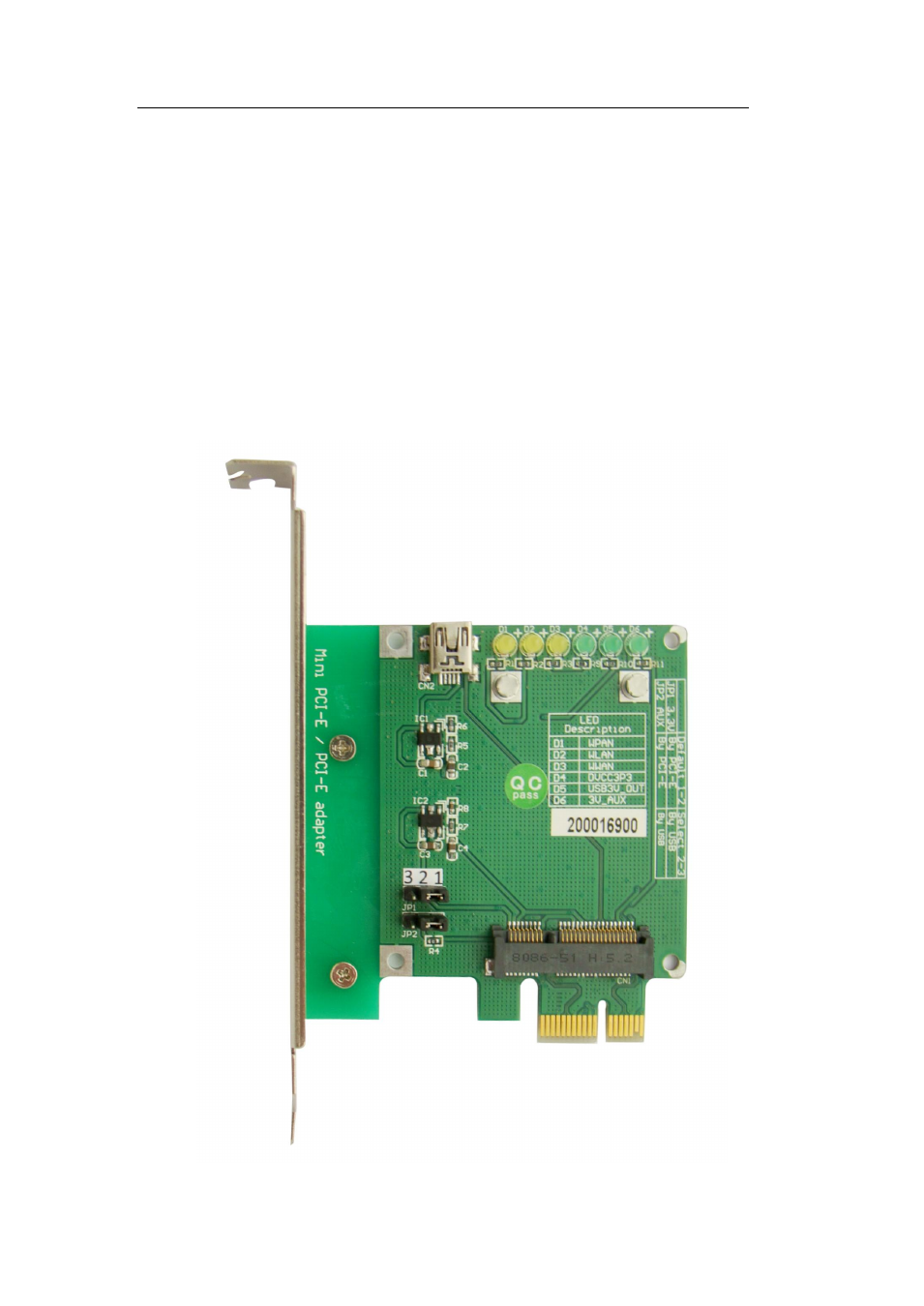

Figure-1 Mini PCI-E to PCI-E Adapter (heads)
