POWER DOOR LOCK WIRING
PROGRAMMING
DIP SWITCH PROGRAMMING
There are 4 Dip switches under the access door on top of the control module for point of installation
programming options.
DIP SWITCH #1 - DOOR LOCK/UNLOCK PULSE TIME: ON=0.75 Sec. OFF=3 Sec.
DIP SWITCH #2 - IGNITION CONTROLLED DOOR LOCKS:
ON=Lock/Unlock with Ignition OFF=No Lock/Unlock with Ignition
DIP SWITCH #3 - LOCK WITH PASSIVE ARM:
ON= Doors will lock on Passive arming OFF= Doors will not lock on Passive arming
DIP SWITCH #4 - PASSIVE / ACTIVE ARMING SELECT:
ON= Alarm arms automatically 30 Sec. after last door closed
OFF= Alarm arms only with remote control. (Active)

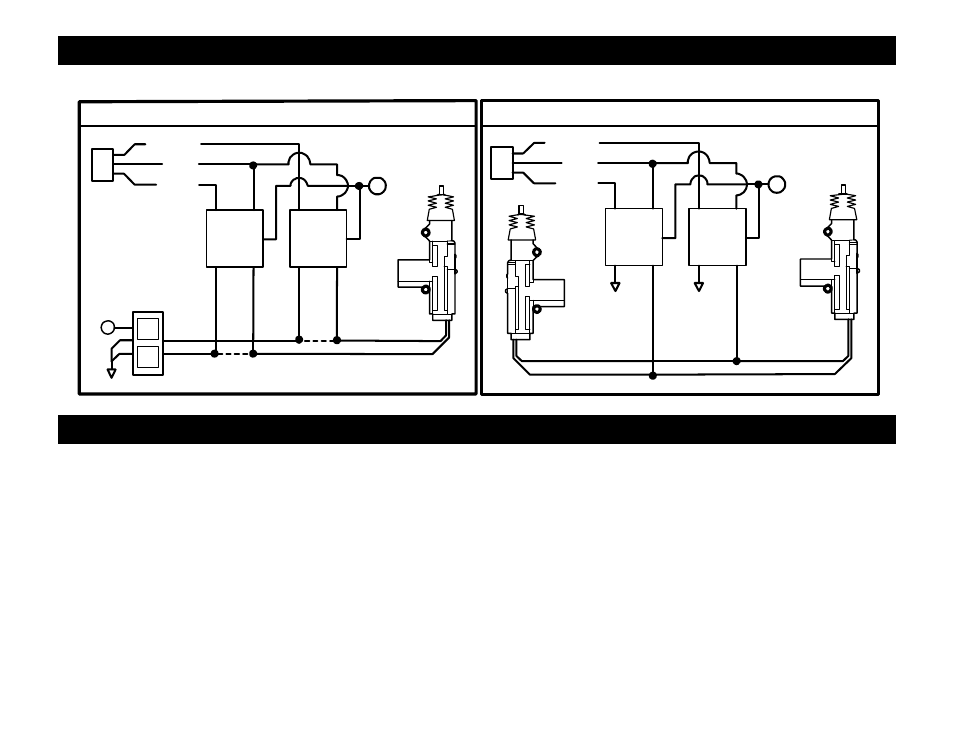

AFTERMARKET MOTOR/DOOR LOCK WIRING REVERSE POLARITY DOOR LOCK WIRING
GREEN GREEN
FUSED FUSED
RED RED +12V +12V
BLUE BLUE + +
86 85 86 85 86 85 86 85
87 87 87 87
30 87A 30 87A 30 87A 30 87A
+ L CUT
UL
CUT
MASTER
SWITCH
LOCK
UNLOCK
6
