Alumax 790c Supplement - Manual (Page 4)

EPH-N00-06078
6-3-02
Page 4 of 4
4
6

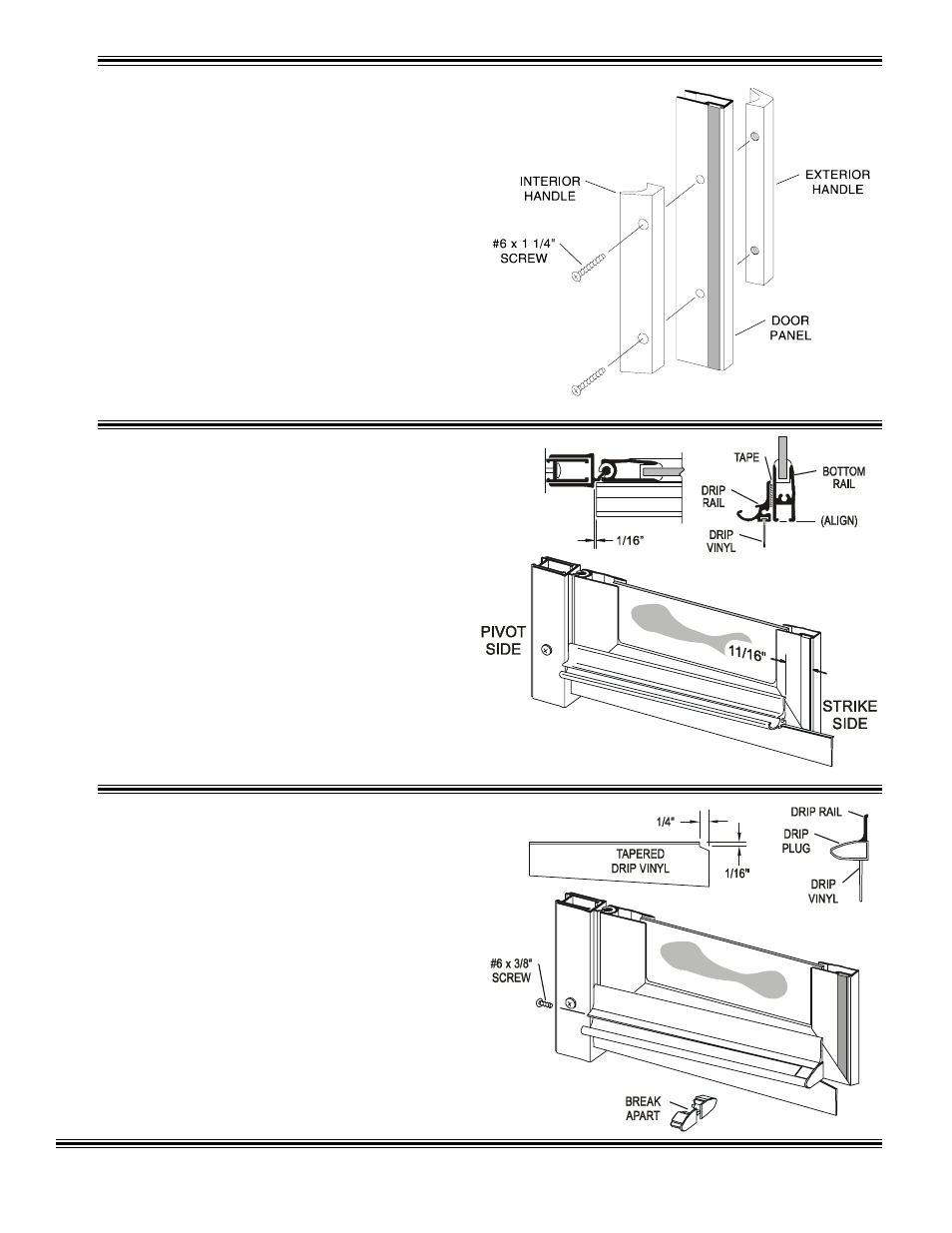

Attach the interior door handle [*E] and the
exterior door handle [*F] to the door panel [*A]
with two #6-32 x 1 1/4" round head screws [*G].
5
Cut the drip rail [*J] to the length of the bottom rail
minus 11/16". Clean the bottom door rail and the drip rail
thoroughly to ensure proper adhesion. Unroll the double stick
tape [*L] and carefully apply it to the back of the drip rail (do not
peel the tape backing yet).
Insert the tapered drip vinyl [*K] into the drip rail. Position the
drip rail flush with the bottom and pivot side of the door panel
[*A], then raise the strike side until the bottom edge of the drip
vinyl is parallel to the curb filler[*C]. Mark the location of each
end of the drip rail.
NOTE: Cleaners with alcohol content can dissolve
the adhesive that attaches the drip rail. To prevent
this possibility, place a small bead of clear sealant at
the top of the drip rail where it is attached to the
bottom rail.
Adjust the drip vinyl [*K] by sliding it left
or right until it just touches the curb filler [*C].
Trim the vinyl (flush with the pivot end and notch
1/4" longer than the drip rail as shown on the
strike end). Secure it with one #6 x 3/8" truss head
screw [*M] in the pivot end of the drip rail.
The drip plug [*N] is supplied with a left and right
hand plug together. Break the right and left drip
plugs apart and insert the appropriate plug into
the high (strike) side of the drip rail. Discard the
unused drip plug. Peel off the tape backing and
carefully press the drip rail [*J] to the door in the
marked position.
