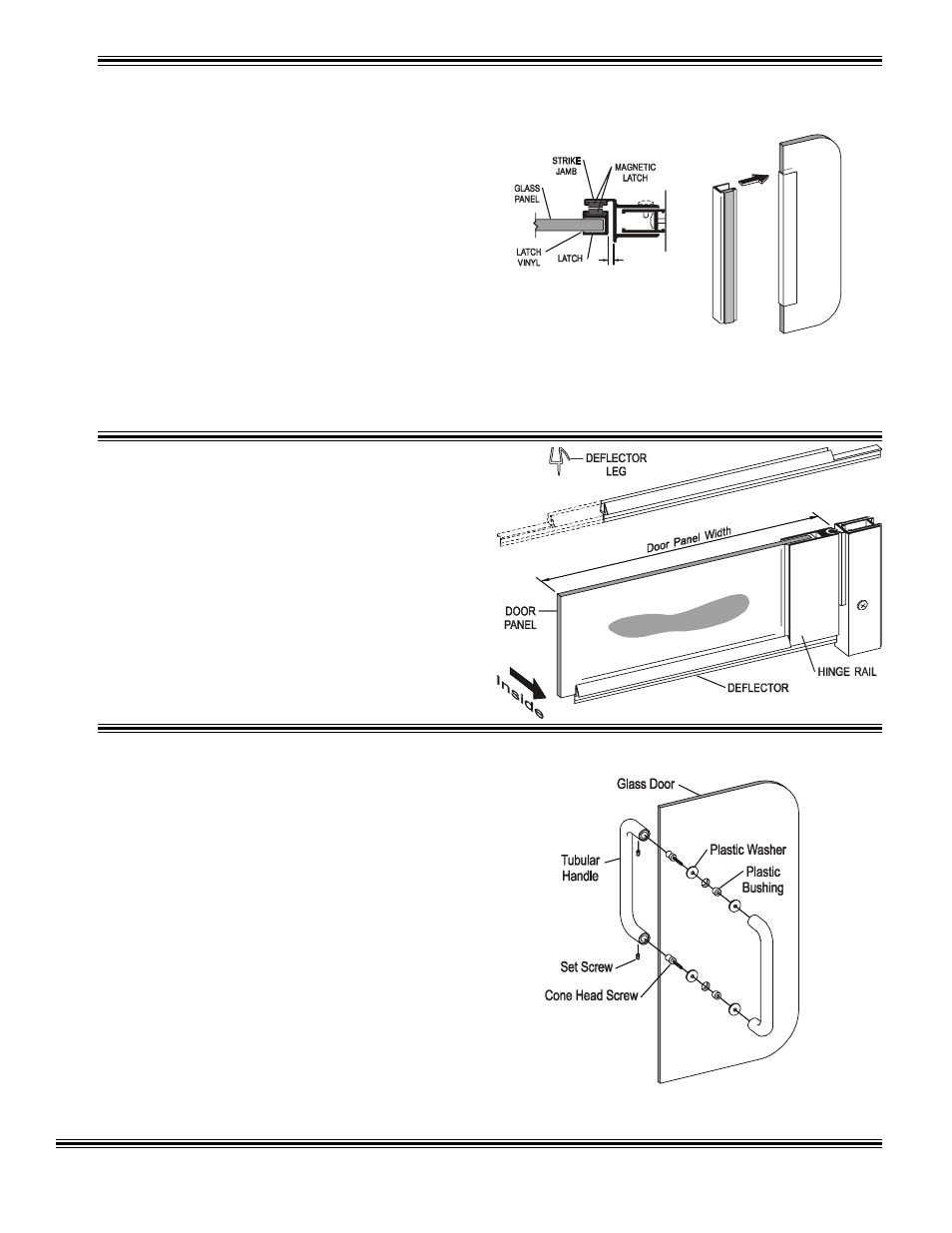

Slide the latch [*F] with magnet onto the strike edge
of the door panel. Close the door and slide the latch up or
down until the two magnetic strips are aligned. Use a
pencil or masking tape to mark the location of the latch on
the door.
Wrap the latch vinyl [*E] over the edge of the door glass
between the marks and carefully drive the door latch onto
the door panel. Spraying glass cleaner or water onto the
vinyl will make assembly easier.
Close the door and check for proper operation of the
magnetic catch.
Determine the desired handing of the deflector
[*M]. The deflector leg must go to the inside of the unit
and the notch fits under the hinge rail as shown in the
drawing at right. To determine the door panel width
measure the distance from the edge of the hinge rail to the
far edge of the glass door panel. The deflector should be
cut to Door Panel Width - 7/16". Press the deflector firmly
on the bottom edge of the glass as shown.
Locate the handle [*G] that has no Set Screws.
Place a Plastic Bushing [*J] in the top handle hole then
place a Plastic Washer [*H] against the glass. Place the
handle without Set Screws against the Plastic Washer and
insert the threaded end of the Cone Head Screw [*K]
through the bushing into the threaded insert in the end of
the handle and tighten. Repeat the procedure for the
bottom hole. Place Plastic Washers [*H] against the
opposite side of the glass and press the remaining handle
[*G] over the end of the Cone Head Screw. While holding
the handles firmly against the glass tighten the Set Screws
[*L].
1/8"
