I N S TA L L AT I O N - - S T E P S 1 - 4
1
3
2
4

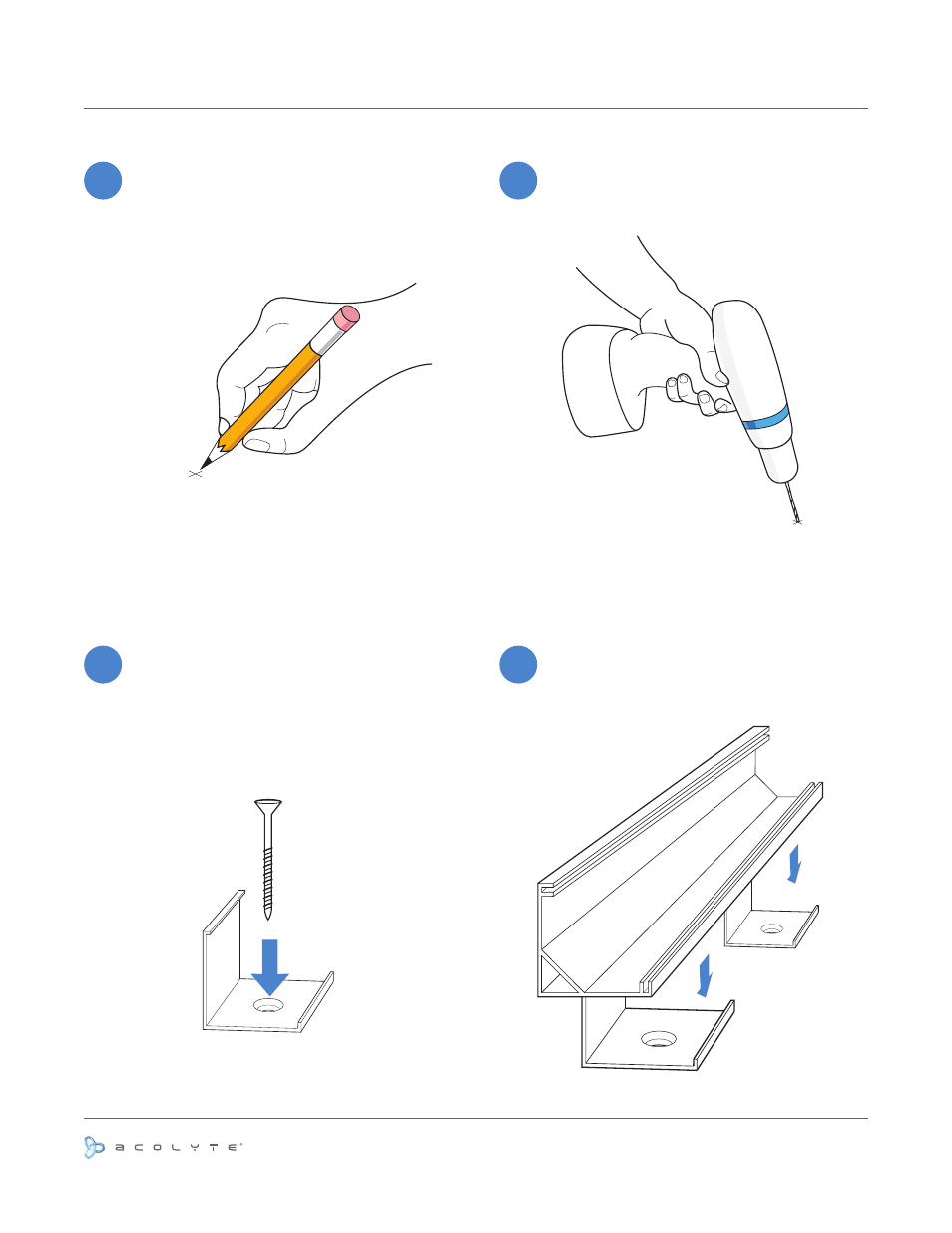

Mark points every 1 meter (3.28’) along
the intended path of channel. If channel is
shorter than 1 meter, 2 mounting clips will
be used.
Screw each mounting clip (A) into place
using the proper sized screw for the
mounting clup you’re using. (B).
Reminder: actual mounting clip may differ in
appearance from the mounting clip below,
but installation procedure remains the same.
Drill a pilot hole for the mounting clips with
a drill bit.
Snap channel (C) into mounting clips (A) so
that the channel is held in place.
PA G E 2
C L I C K !
(A)
(A)
(C)
(A)
(B)
