Focus/Zoom Control Interface
Crestron CNXFZ
Appendix: Application Examples
The application examples in this appendix suggest the lens cabling connection for
the lens type jumper (A through D) to be used for a given camera lens. The camera
lens pins are listed in the left-most column. The CNXFZ LENS connector pins are
listed in the right-most column.

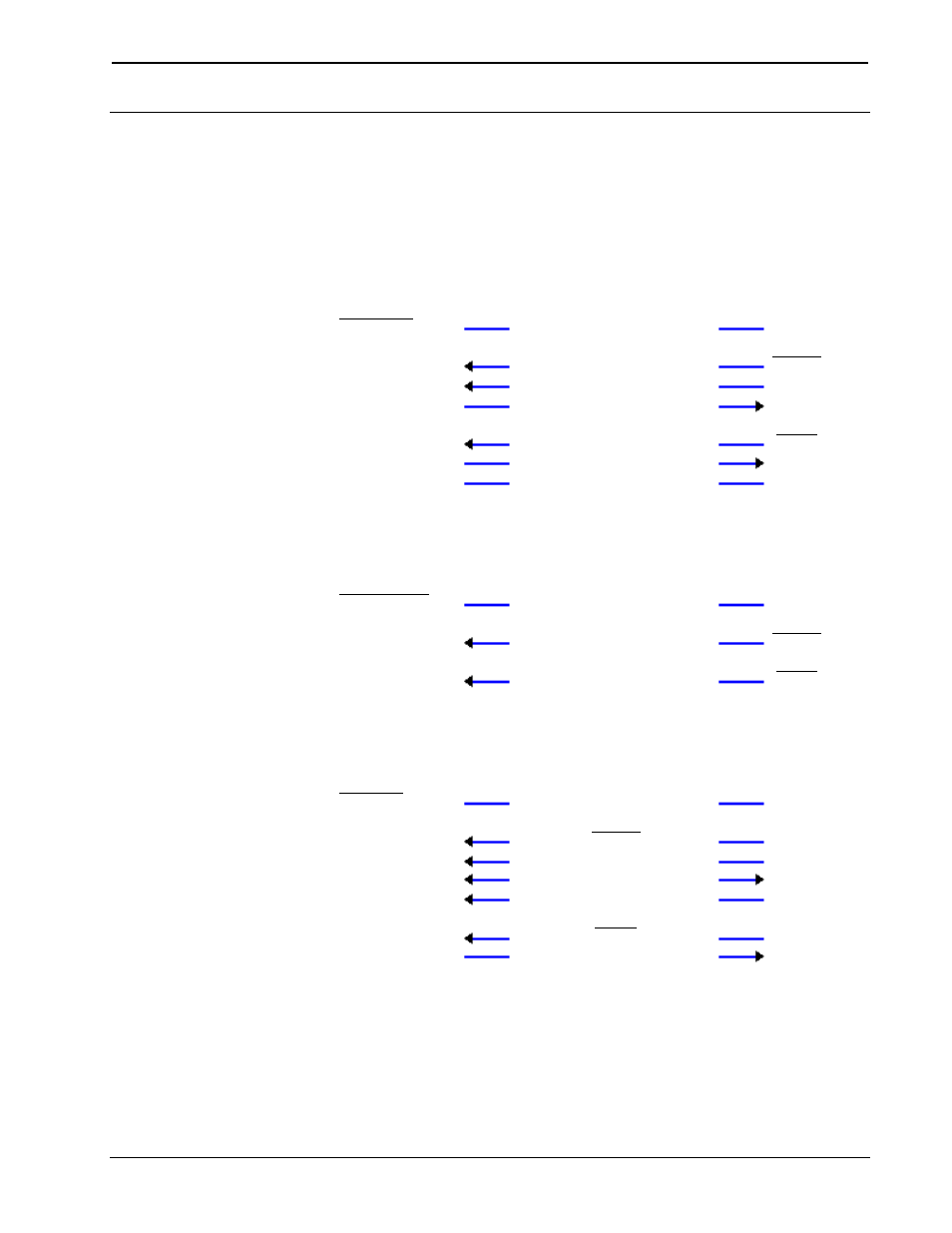

Lens Cabling Connection for Jumper A (+/-12V)
Canon
J6 x 11REA
3 (RED)
Lens Common
2
FOCUS
2 (WHT)
Focus Motor Drive
1
8 (RED/BLK)
Feedback Supply
12
7 (WHT/BLK)
Focus Feedback
14
ZOOM
1 (BLK)
Zoom Motor Drive
3
4 (GRN)
Zoom Feedback
13
6 (BLU)
Zoom Ground
15
OR
Panasonic WV-LZ81/10 (presets not supported)
HIRSCHMAN
CONNECTOR
1
Lens Common
2
FOCUS
3
Focus Motor Drive
1
ZOOM
4
Zoom Motor Drive
3
OR
Cosmicar H6ZAHE-2P and C6Z1218H2ESP-2
CONNECTOR
J4 (DIN 8)
2
Lens Motor Common
2
FOCUS
5
Focus Motor Drive
1
7
Feedback Supply
12
3
Focus Feedback
14
8
Feedback Ground
15
ZOOM
4
Zoom Motor Drive
3
1
Zoom Feedback
13
18
• CNX Focus/Zoom Control Interface: CNXFZ
Operations Guide - DOC. 5753
