Connecting Analog Speaker Systems
Your audio card supports analog speaker systems of up to 5.1 channels. To learn more about connecting
different channel speaker systems, consult the following sections:
l
l

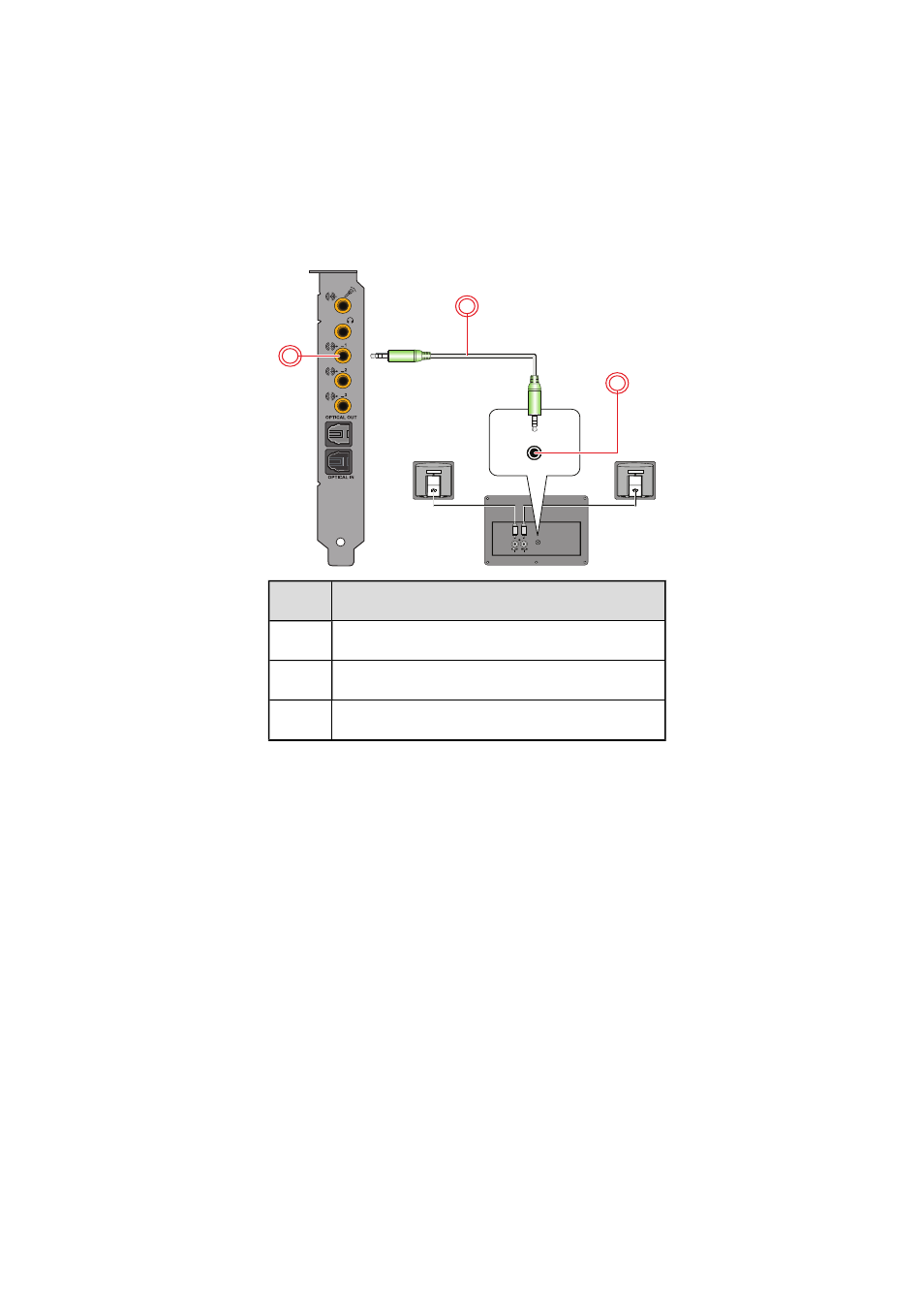

2.1 channel analog speakers
audio
inputs
speakers
audio
inputs
1
2
3
Jack, Connector or Cable
1.
Line Out 1 jack (Front L/R)
2.
2 channel audio cable (available separately)
3.
Audio Input jack
Connecting Speakers and Headphones 9
