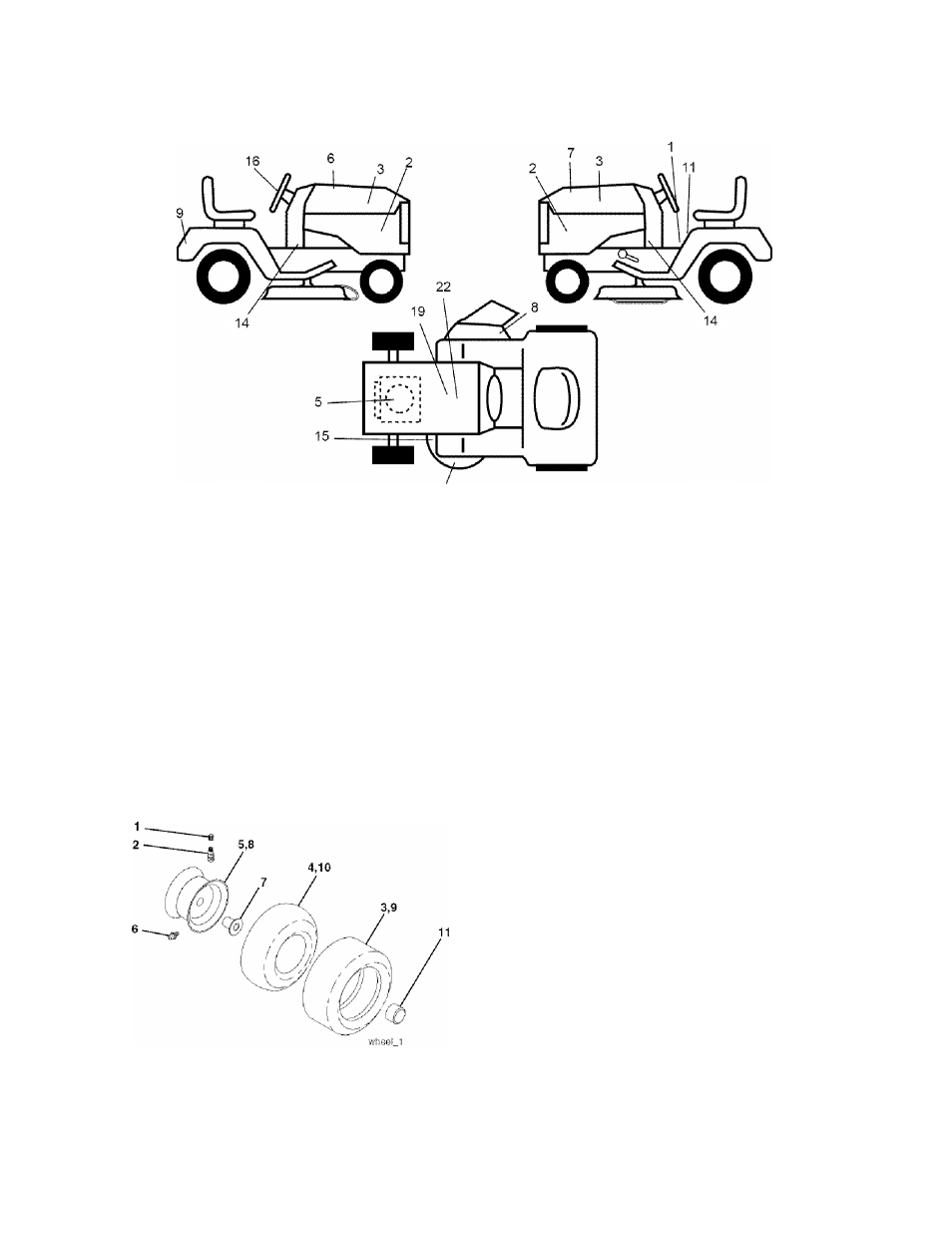

TRACTOR - - MODEL NUMBER 917.275820
DECALS
KEY PART
20
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156439
Decal Fender Danger Sears
16
164065
Decal Steering
2
186367
Decal Hood Side RH/LH
19
138047
Decal Battery Diehard Sears
3
186366
Decal Hood RH/LH
20
172331
Decal Deck Mower EZ3
5
189020
Decal Engine H/P
22
149516
Decal Battery
6
133644
Decal Maint Customer Sears Dom
- -
178392
Decal Disconnect
7
193565
Decal Replacement
- -
138311
Decal Lift Handle
8
179128
Decal Deck
- -
184310X428
Pad Footrest Lh STLT
9
186572
Decal Fender Craftsman
- -
184311X428
Pad Footrest Rh STLT
11
193307
Decal Fender STLTH Oper Inst E/S
- -
195509
Manual Owner’s (English)
14
189088
Decal Dash Panel
- -
195510
Manual Owner’s (Spanish)
15
160396
Decal Mower Drive Schematic
WHEELS & TIRES
KEY PART
NO. NO.
8
9
10
59192
65139
106222X
59904
5
106732X624
6
278H
7
9040H
106108X624
138468
7152J
11
104757X428
- -
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire (Not Provided,
Service Item Only)
Rim, Front
Fitting, Grease (Front Wheel Only)
Bearing, Flange (Front Wheel
Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire(Not Provided,
Service Item Only)
Cap, Axle
Sealant, Tire (10 oz.Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
44
