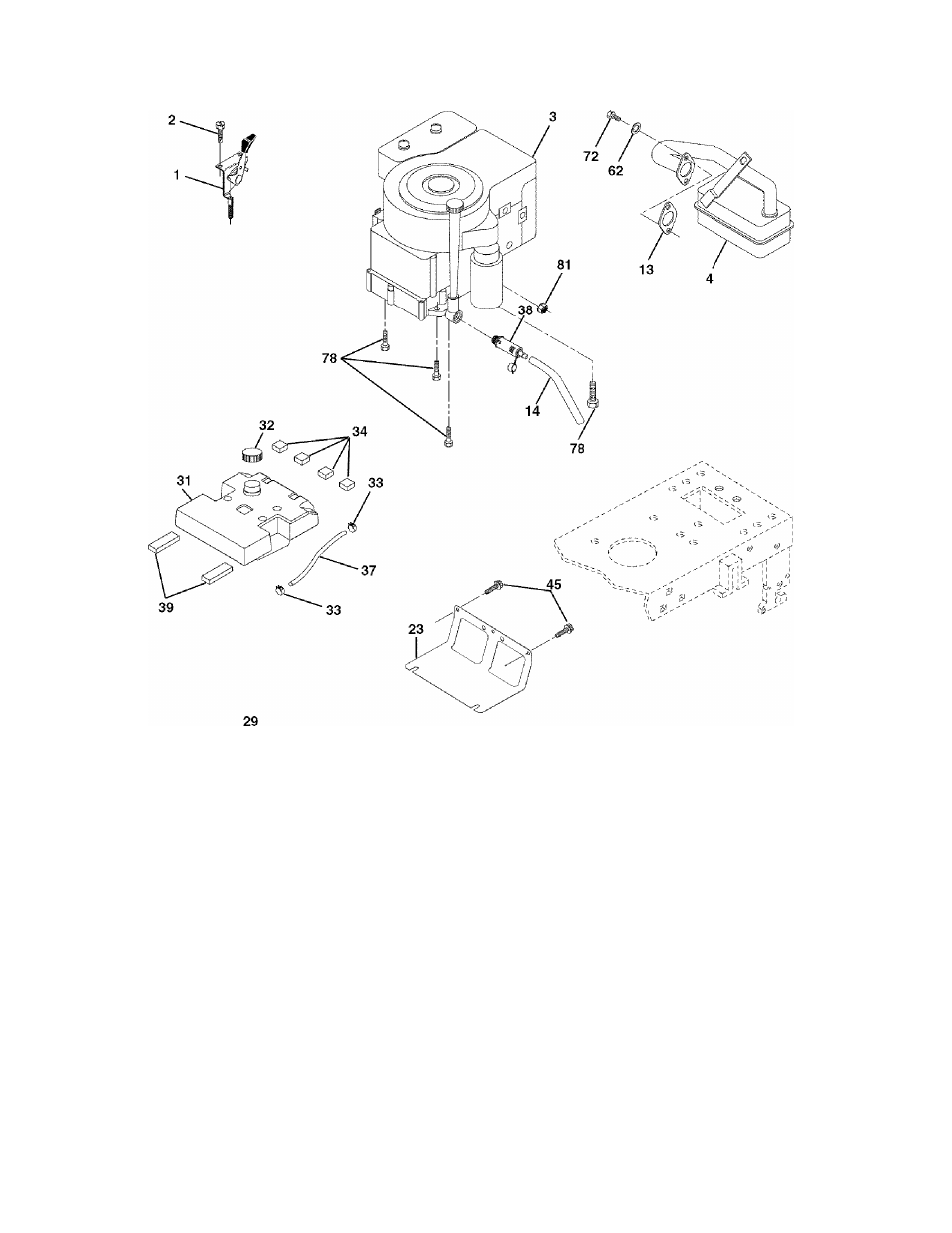

TRACTOR - - MODEL NUMBER 917.275820
ENGINE
OPTIONAL EOUIPMENT
Spark Arrester
engine-bs.1cyl_30
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
170545
Control Throttle/Choke
38
181654
Plug, Drain Oil Easy
2
17720408
Screw Hex Thd Cut 1/4-20 x 5/8
39
109227X
Pad Idler 1.75
X.
75
X.
06
3
Engine (See Breakdown) Briggs
44
17670412
Screw Hexwsh ThdrI 1/4-20 x
4
137352
Model No. 31P777-0296-E1
Muffler Exhaust
45
17000612
3/4
Screw Hex Wsh Thdrol
13
14
165291
148456
Gasket Muffler
Tube, Drain Oil Easy
46
19091416
3/8-16x3/4
Washer 9/32 x 7/8 x 16 Ga.
23
169837
Shield Browning/Debris Guard
62
10010500
Washer Split
29
137180
Arrestor Spark
72
71070512
Screw Hex Head Cap
31
32
157103
161696
Tank Fuel
Cap Fuel
78
17060620
5/16-18x3/4
Screw 3/8-16
X
1-1/4
33
123487X
Clamp Hose BIk
81
73510400
Nut, Keps 1/4-20 Starter Nut
34
37
106082X
137040
Pad Spacer
Line Fuel
NOTE
inches
: All component dimensions given in U.S.
I 1 inch = 25.4 mm
